Home Assistant: Proxmox VE 8.1 Quick Start Guide

Hot off the press is Proxmox VE 8.0, which GA’d on June 22, 2023. It is based on Debian Bookworm, and has a number of new features like defaulting to Linux Kernel 6.2. This post is a completely refreshed version of my popular Home Assistant: Proxmox VE 7.4 Quick Start Guide, but all new for Proxmox VE 8.0 (and 8.1).

Just like my 7.4 guide, this posts covers installing Home Assistant OS (HAOS). HAOS is, IMHO, the preferred method to run Home Assistant for the large majority of people. There are other installation flavors, such as supervised or container, but those are out of scope for this post. HAOS makes Home Assistant as turn-key as possible.

Proxmox VE 8.1 has a new text based fall-back installation UI, which can be very helpful for working around issues with newer CPUs. I did run into GUI installation issues with Proxmox VE 7.4 on my Intel 12th Generation CPUs, so this enhancement is very welcome. We will use the new console install method in this updated post.

Update December 2, 2023: Added new sections: Two Factor Setup, Proxmox 8.1 Notifications, Glances Monitoring, Proxmox Monitoring.

Update November 27, 2027: Made a couple of minor tweaks to account for Proxmox 8.1 changes/enhancements.

Update October 21, 2023: I refreshed this post for the latest version of Home Assistant and tteck’s awesome scripts.

If you are already running Proxmox VE 7.4 and want to upgrade, check out my guide:

How-to: Proxmox VE 7.4 to 8.0 Upgrade

More Home Assistant Related Posts

What's covered in this guide?

This guide walks you through a bare metal installation of Proxmox, followed by deploying a Home Assistant OS (HAOS) VM. To be more specific I cover:

  • Why Proxmox VE for Home Assistant?
  • Proxmox Storage Recommendations
  • Creating Proxmox USB Boot Media
  • Installing Proxmox VE 8.1
  • Proxmox Post-Install Configuration
  • Intel Microcode Update (Optional)
  • Installing Home Assistant OS (HAOS) VM
  • Setting Static IP Address (Recommended)
  • Blocked DNS over HTTPS Workaround
  • USB Passthrough to HAOS (Optional)
  • Optimize CPU Power (Optional)
  • Check SMART Monitoring (Optional)
  • VLAN Enable Proxmox (Optional)
  • Proxmox Let’s Encrypt SSL Cert (Optional)
  • Proxmox Two Factor Setup (Optional)
  • Proxmox 8.1 Notifications (Optional)
  • Glances Configuration (Optional)

Why Proxmox VE for Home Assistant?

First, why would you run Home Assistant OS as a VM on Proxmox VE 8? Well, Home Assistant is typically not very resource hungry and even old mini-PCs from several years ago would have a lot of left over computing resources that you can run other services. Running Proxmox VE, which is a free hypervisor based on KVM, has a nice management UI and is pretty easy to use. It allows you to run HAOS in a VM, and you can then run other VMs or LXC containers on the same hardware.

If you are new to Home Assistant, not super nerdy, and just want a super reliable and easy to use “appliance”, then don’t go the Proxmox VE route. Just grab a cheap used mini/ultra-mini PC and run Home Assistant OS on it “bare metal” and be done with it. But if you know you want HAOS as a VM, potentially do LXC containers down the road, Proxmox VE is a great (and free) option. Even though Home Assistant can do backups, being able to do a whole HAOS VM snapshot at the hypervisor level can be great for roll-back from failed upgrades or “oh crap” mistakes.

The process covered in this post uses the awesome tteck Proxmox scripts. This makes the process super easy, grabs the latest version of HAOS, and enables GUI-driven advanced customizations. He’s updated his scripts to be compatible with Proxmox VE 8.1.

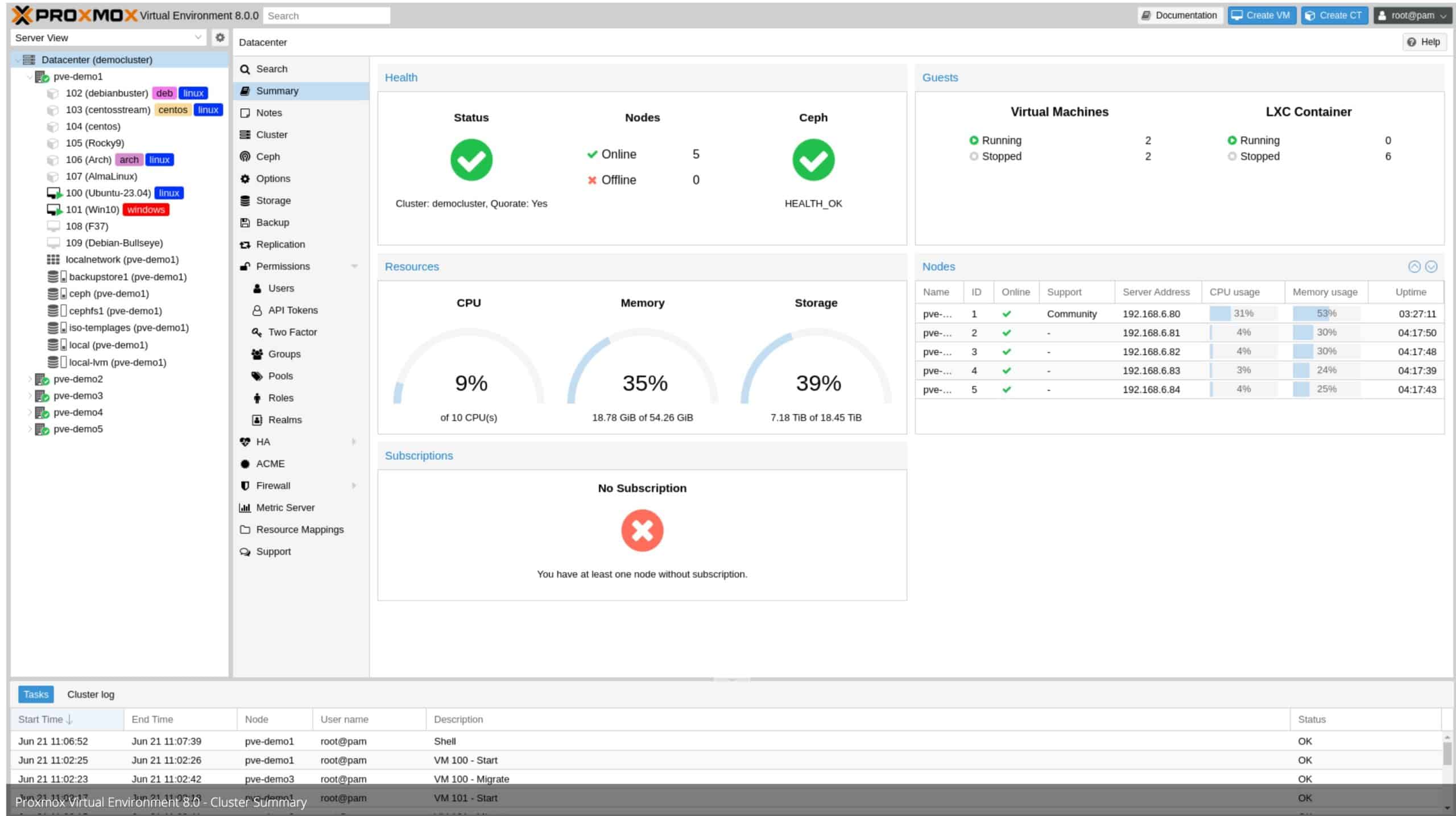

Image Courtesy Proxmox.com

Proxmox Storage Recommendations

Proxmox is designed to be used on everything from an old PC to high-end enterprise production environments. There is certainly some debate on what type of storage configuration you should use. For example, should I use ZFS? Should I use multiple physical storage devices and use ZFS mirroring? Do I need a separate boot drive? Separate log and cache drives?

Those are all valid questions to ask in an enterprise production environment. However, for a home environment my thinking is KISS (keep it simple stupid), unless you REALLY know what you are doing. Why overly complicate your configuration for a home server?

For a home environment where you have a NAS (such as Synology, QNAP, etc.) I would suggest:

  • Use a single SSD/NVMe (likely M.2) drive in your Proxmox server. Make sure it’s large enough for future growth.
  • Use the EXT4 (default) filesystem with LVM-thin (also default)
  • Use Proxmox’s built-in backup to do nightly backups of all VMs and LXC containers to your NAS
  • Use Home Assistant’s Google Drive backup add-on to do nightly backups to the cloud
  • Configure Home Assistant 2023.6 (and later) to backup directly to your NAS

For more information about Home Assistant Backups and Restores, check out my posts:

Home Assistant: Ultimate Backup Guide
Home Assistant: Ultimate Restore Guide

Super nerds may want to deviate from using a single drive in their Proxmox server and throw in ZFS, do ZFS mirroring, and use multiple storage devices. More power to them if that’s what they want. But for the vast majority of Home Assistant users, a single drive with robust backup is more than sufficient.

Do NOT try and mount NAS storage to the Proxmox host and use that for VM or LXC storage. Always build your VMs or LXCs on local Proxmox storage, or risk running into significant issues.

Creating Proxmox USB Boot Media

In order to install Proxmox on your server, we need to create a bootable USB drive. This is super easy and you can use your favorite tool like Balena Etcher (Mac/PC/Linux). The Proxmox VE installer ISO is very small, at just a bit over 1GB, so your boot media need not be large.

  1. Download the latest “Proxmox VE 8.1 ISO Installer”
  2. Download and install Balena Etcher
  3. Insert your USB boot media

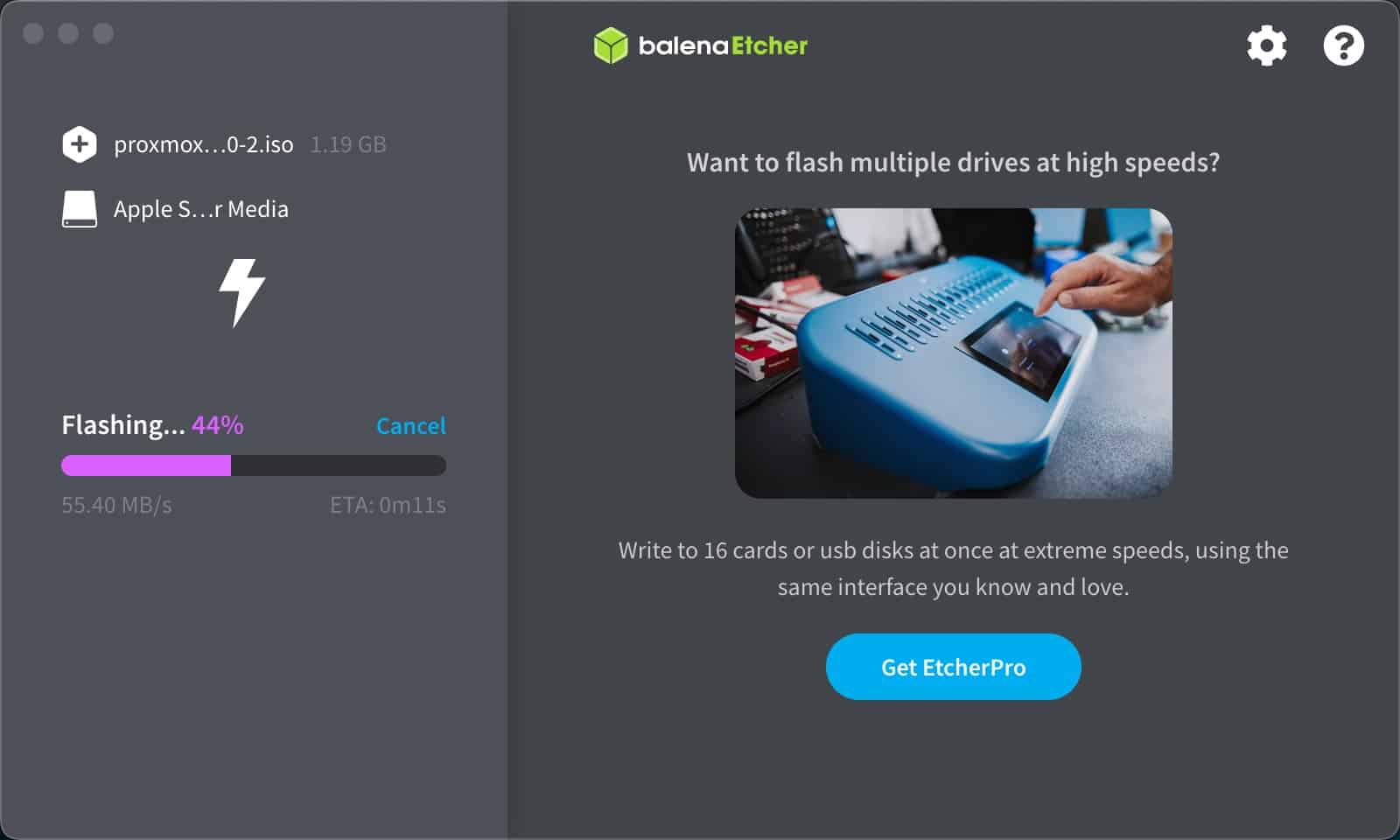

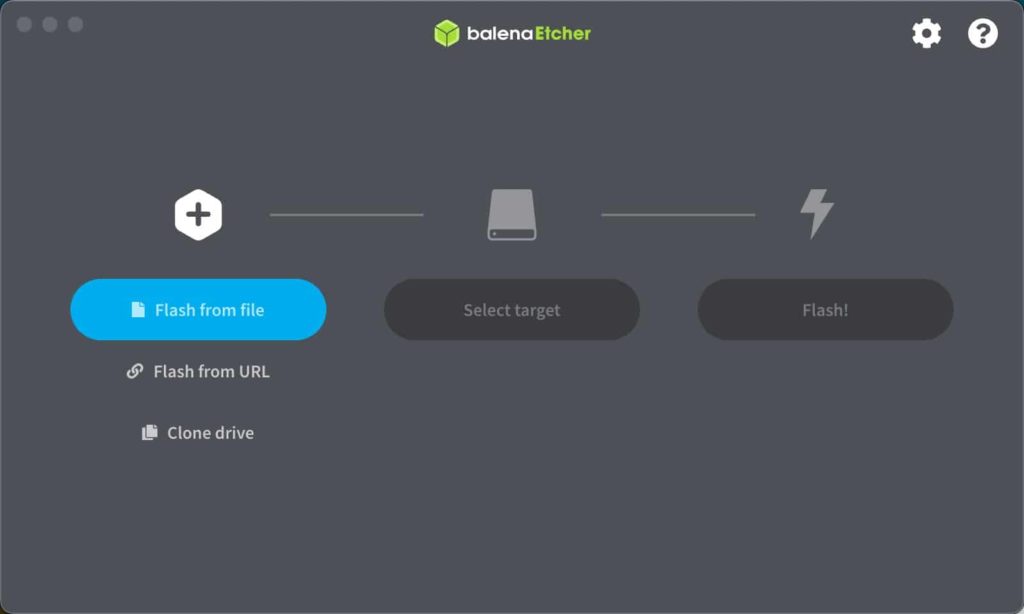

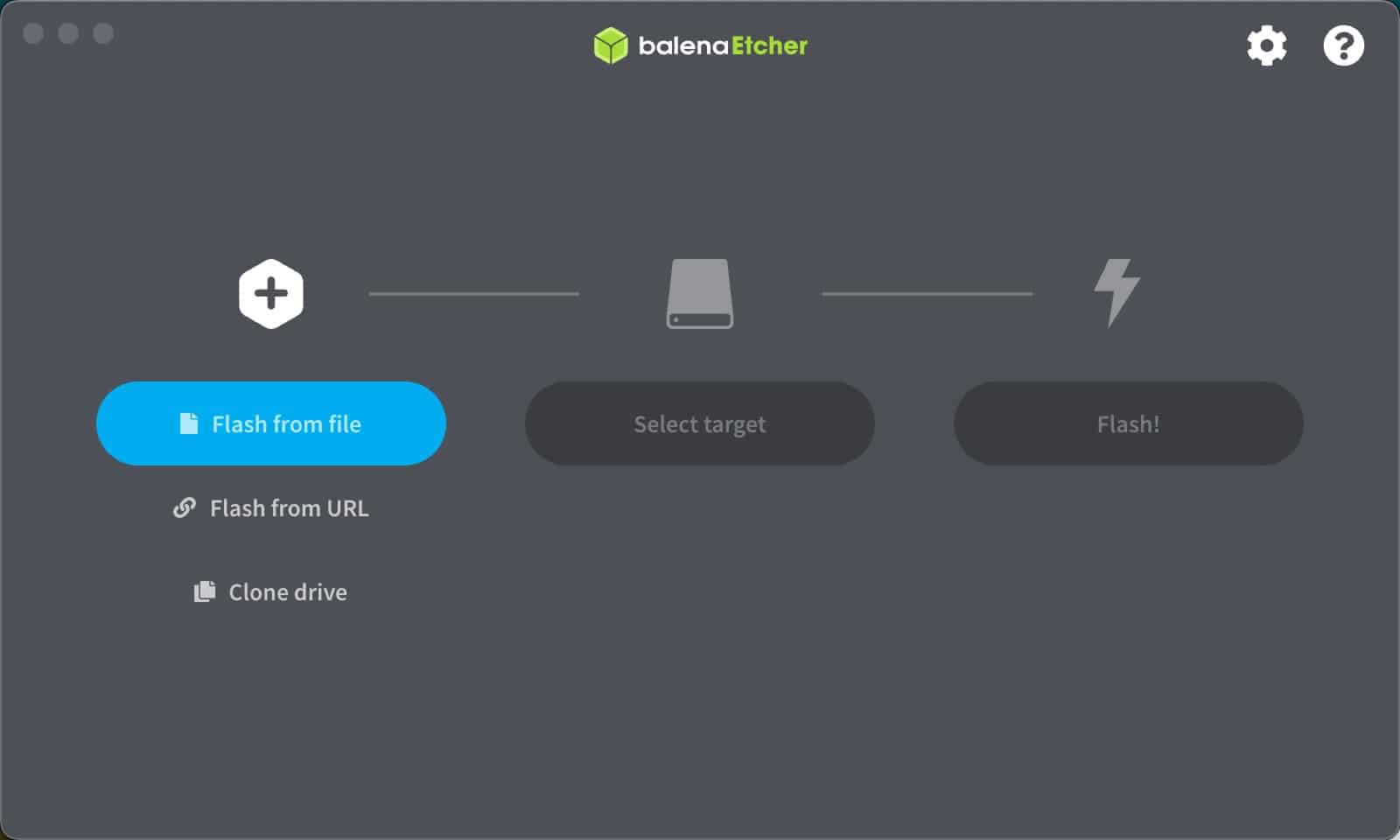

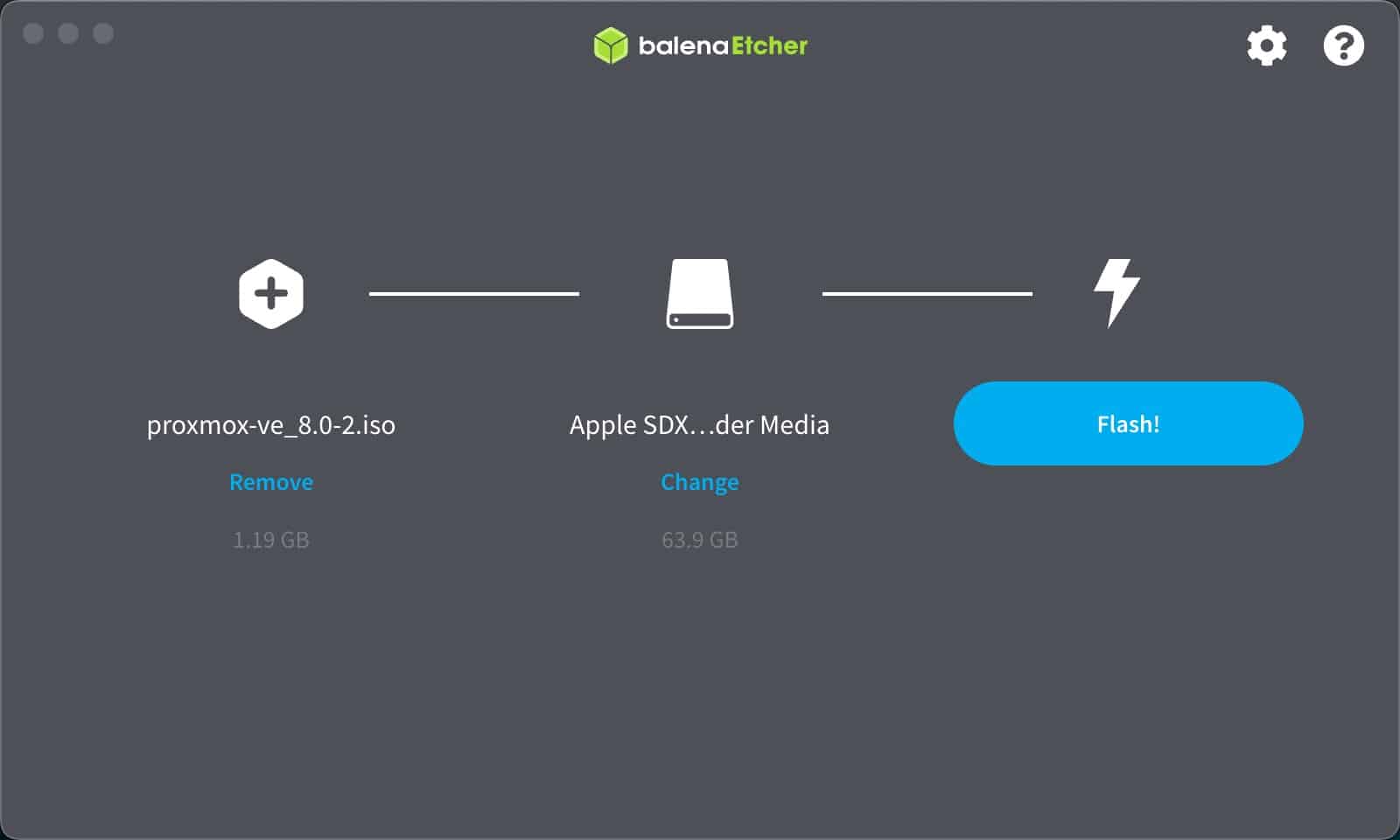

  4. Launch Balena Etcher and select Flash from file

5. Locate the Proxmox VE ISO you downloaded

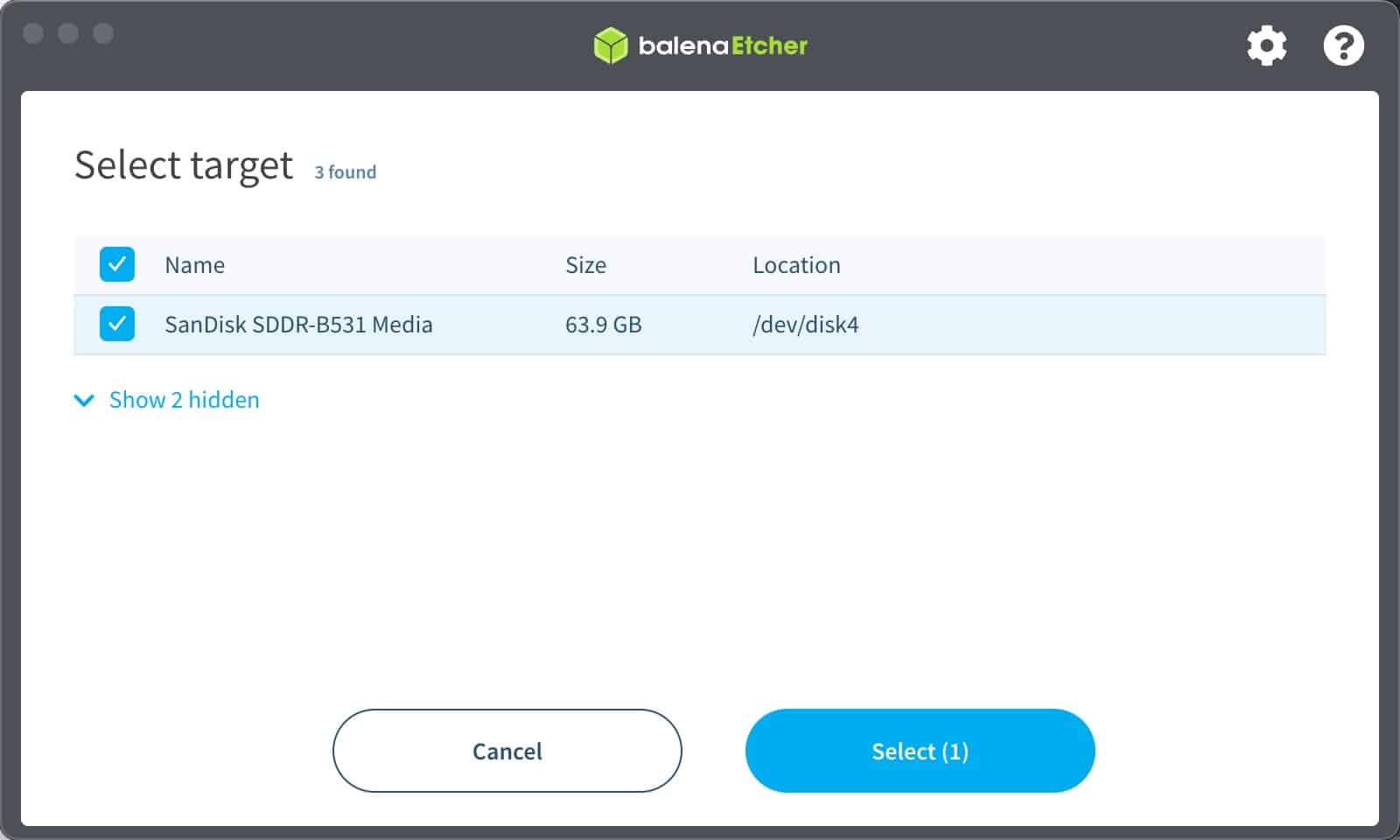

6. Click on Select target and select your USB boot media

7. Click on Flash to write the image to the boot media. On a Mac you may be prompted for your password.
8. Wait a minute or so for the image to be written and verified.


9. After the image is written close Balena Etcher and remove your USB  boot media. On a Mac it is automatically safely dismounted so just pull it out.

Installing Proxmox VE 8.1

  1. Connect a keyboard and monitor to your Proxmox server/mini-pc/NUC/etc.
  2. Power off your server and insert the USB boot media
  3. Power on your server and press the right key to enter your BIOS setup (varies by manufacturer)
  4. Depending on what OS you were previously running, a few settings might need to be tweaked. The name of these settings and menu location varies by BIOS manufacturer. Review the following settings:
  • Enable Virtualization (may be called VT-x, AMD-V, SVM, etc.)
  • Enable Intel VT-d or AMD IOMMU (Future proofing for PCIe/GPU passthrough)
  • Leave UEFI boot enabled. Enable secure boot if installing Proxmox 8.1 or later. Disable secure boot if installing Proxmox 8.0 or earlier.
  • Enable auto-power on (Ensures host will power on after a power interruption)
    • This setting can be hard to find, have non-obvious names (e.g. setting State after G3 to S0 State), or not exist at all. Varies by manufacturer. See screenshot below.
  • If you think down the road you might add a PCIe card (like a m.2 Google Coral TPU), make sure you look through the BIOS settings and DISABLE any PCIe power management (ASPM) options you find.
  • Change the boot order to set your USB boot media at the top.

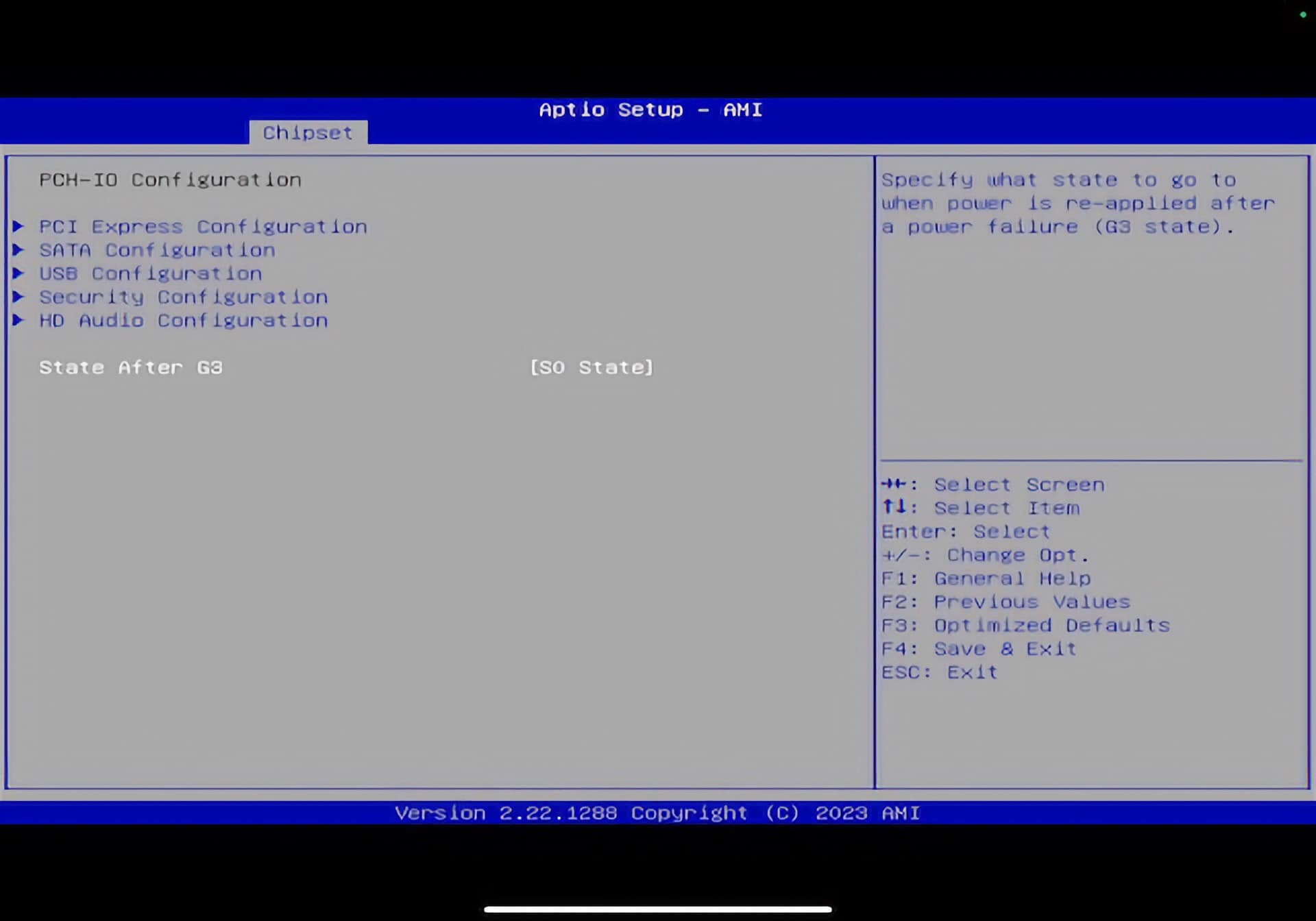

Enable Auto Power On

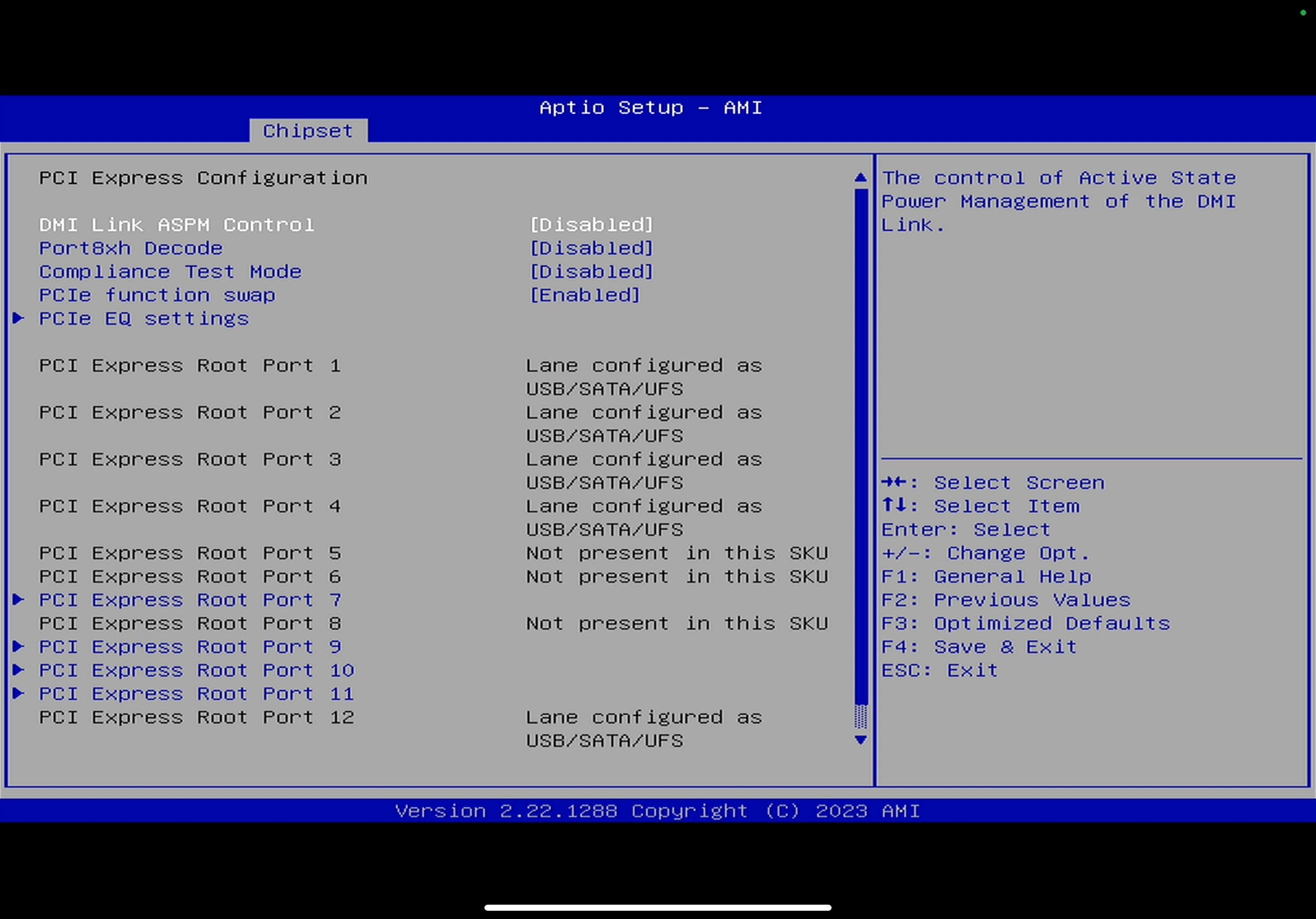

Disable PCIe Power Management (Google Coral)

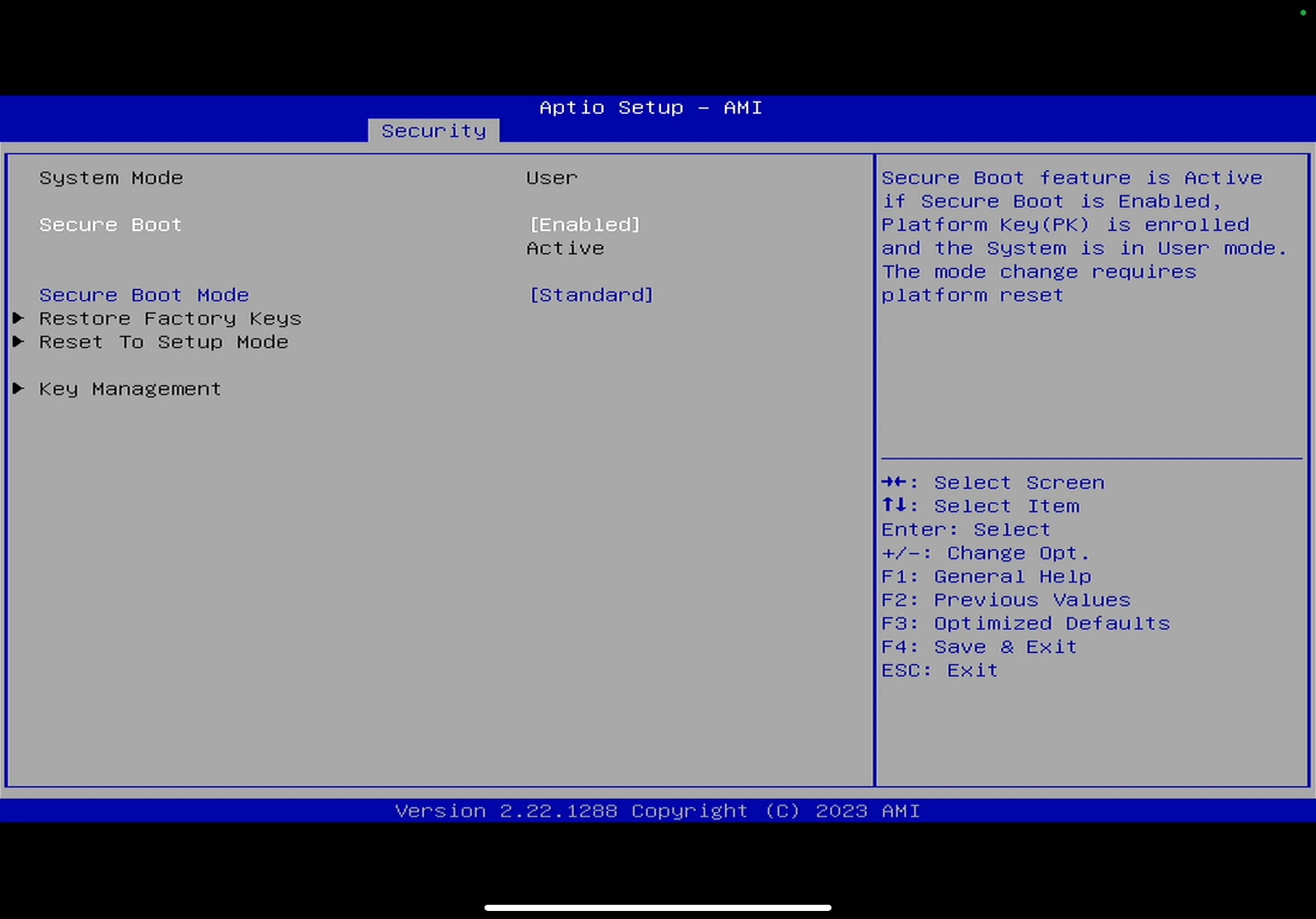

Enable Secure Boot (Proxmox 8.1 and later)

5. Save the BIOS settings and reboot. If all goes well, Proxmox VE 8.1 installer will start up.

Note: New to Proxmox VE 8.0 and later is a Terminal UI installation option. This will gather all the required information for the install, except without using the graphics card. Why can this be helpful? Sometimes the Proxmox installer has compatibility issues with the graphics card. I would suggest trying the Graphical method, and if that fails, switch back to Terminal UI. With Proxmox 8.1 on my 12th Gen Intel the graphical method now works, unlike Proxmox 8.0.0 I’ll walk you through the Terminal UI method, but the graphical method asks the same questions.

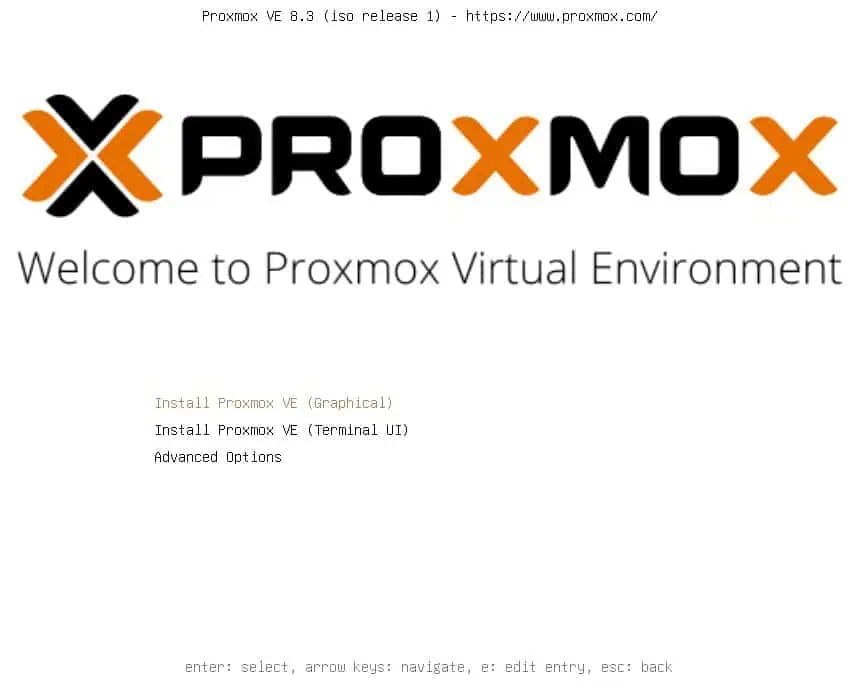

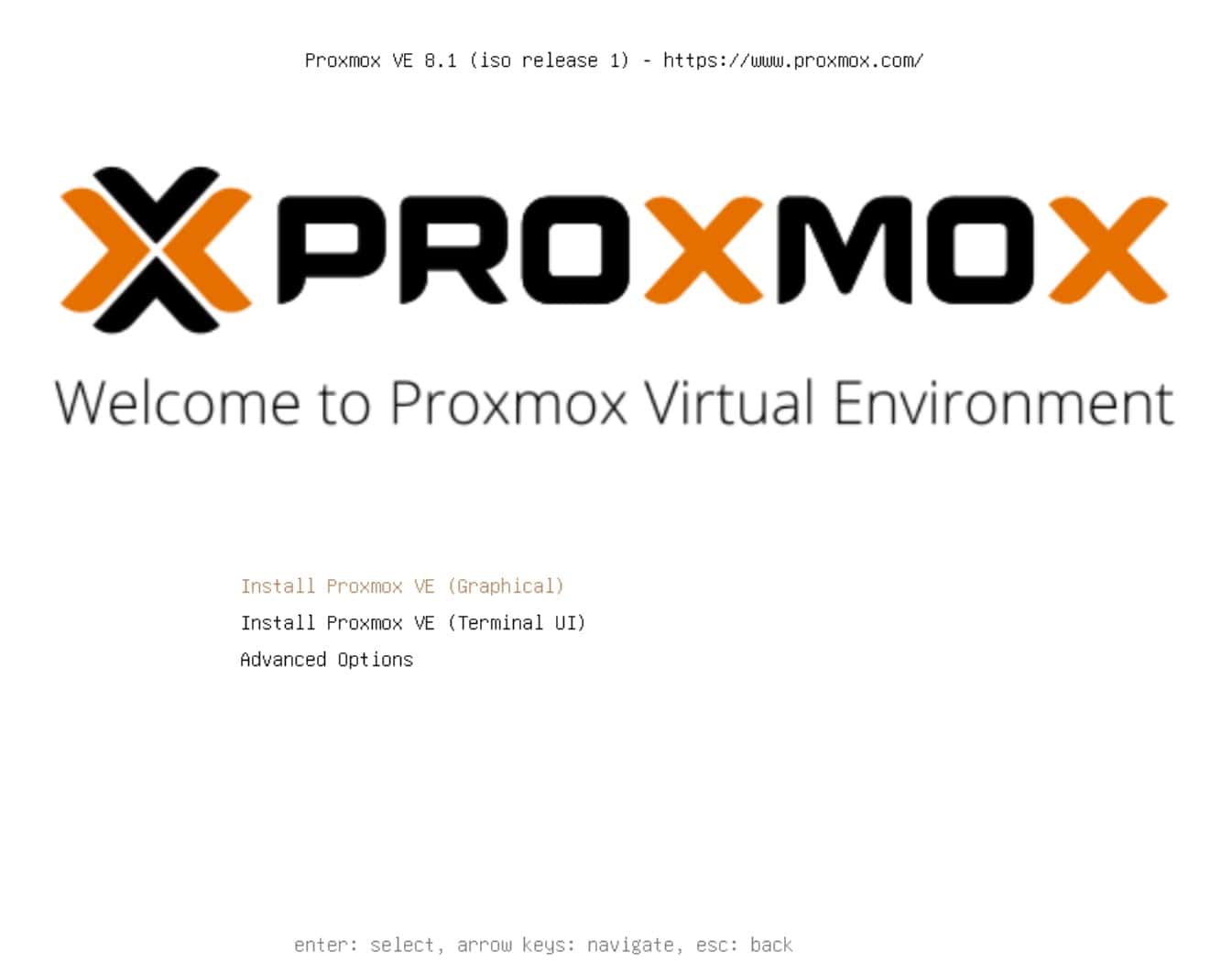

6. Arrow down to Install Proxmox VE (Terminal UI).
7. Press enter on I agree on the EULA
8. Select the Target harddisk and press enter on Next.

Note: Don’t change the filesystem unless you know what you are doing and want to use ZFS, Btrfs or xfs. The default is EXT4 with LVM-thin, which is what we will be using.

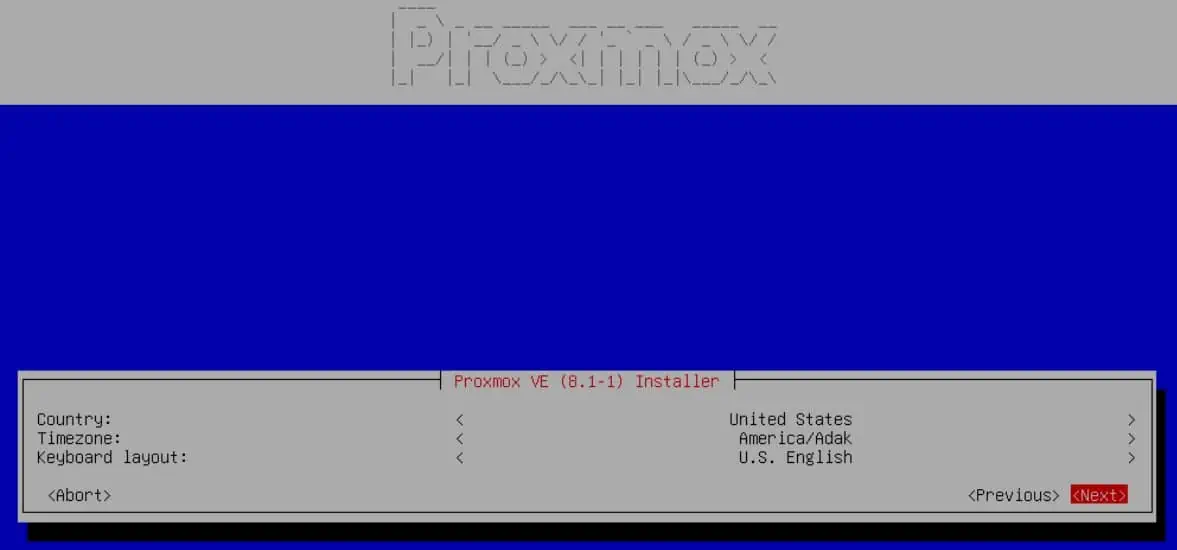

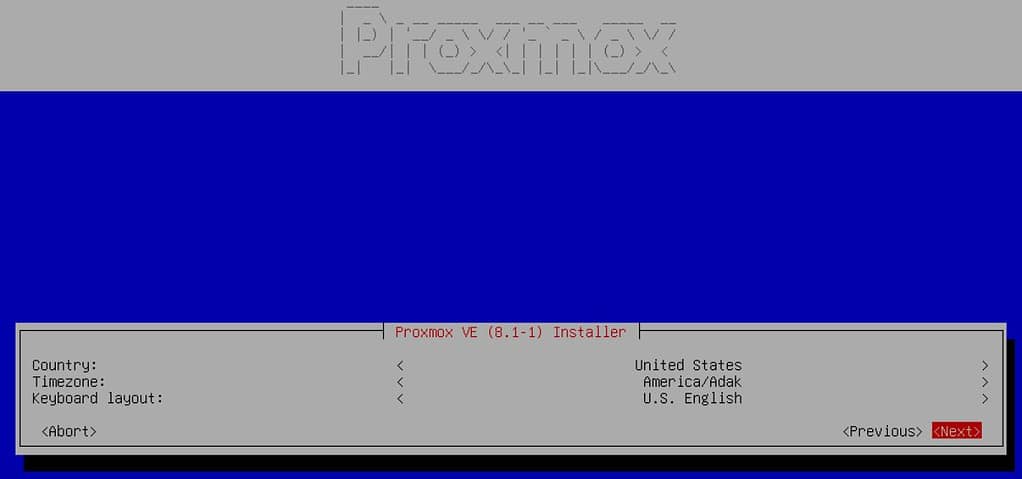

9. Select your Country, Time zone and Keyboard Layout.

10. Enter a strong root password and an email address.

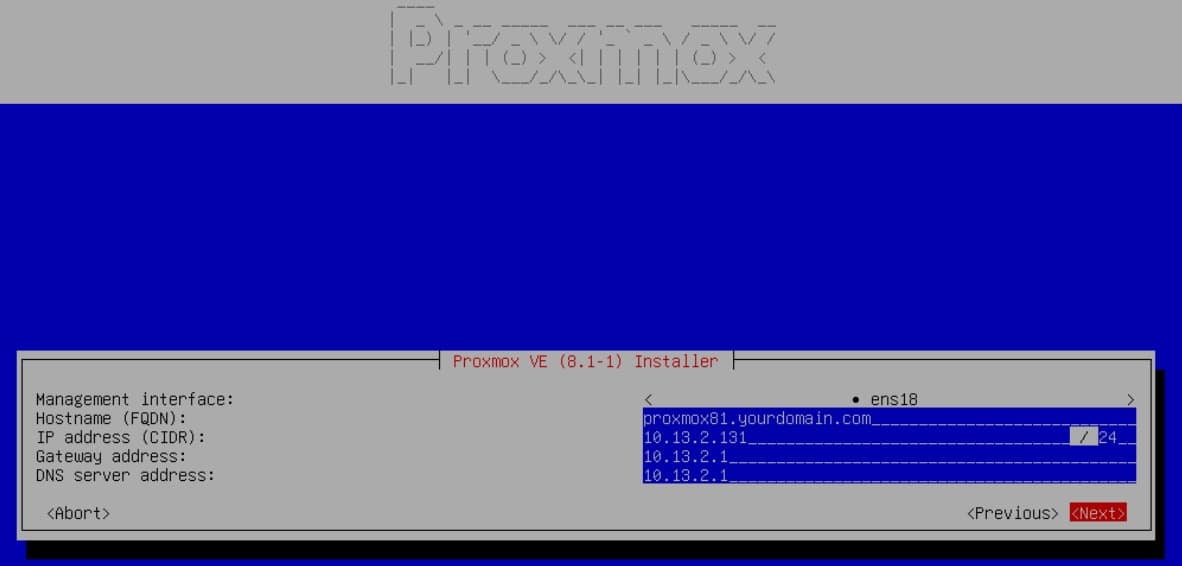

11. Select your Management Interface, Hostname, IP address, Gateway and DNS Server.

Note 1:  If your server is plugged into the network it should grab a DHCP address and populate the other information. I strongly recommend either using a static IP, or create a DHCP reservation for this server. You don’t want the IP to change on you.

Note 2: Put some thought into the Proxmox hostname you want to use. YOU CAN’T change this later or Proxmox will have serious (likely unrecoverable) problems. I’d use something generic like proxmox1.

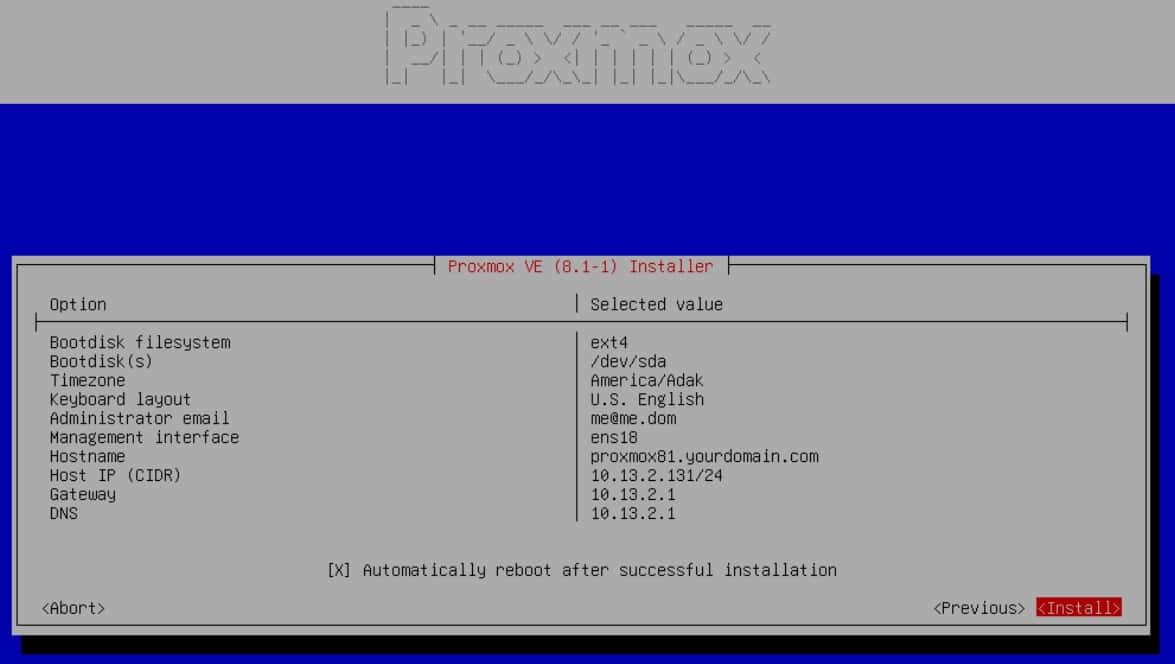

12. Triple check everything on the Summary screen is correct then select Install

Proxmox Post Install Configuration

Before we install Home Assistant, we need to do a couple of configuration tasks. First, we need to update Proxmox with the latest packages. Please note you MUST run the post-configuration script before you do any Proxmox updates or deploy HAOS. If not, you will likely see 401 errors with the enterprise repositories since you (likely) don’t have a Proxmox paid license.

  1. Open a browser and navigate to the IP address and port 8006 (e.g. https://10.13.2.200:8006). Click through all your browser warnings and connect anyway.

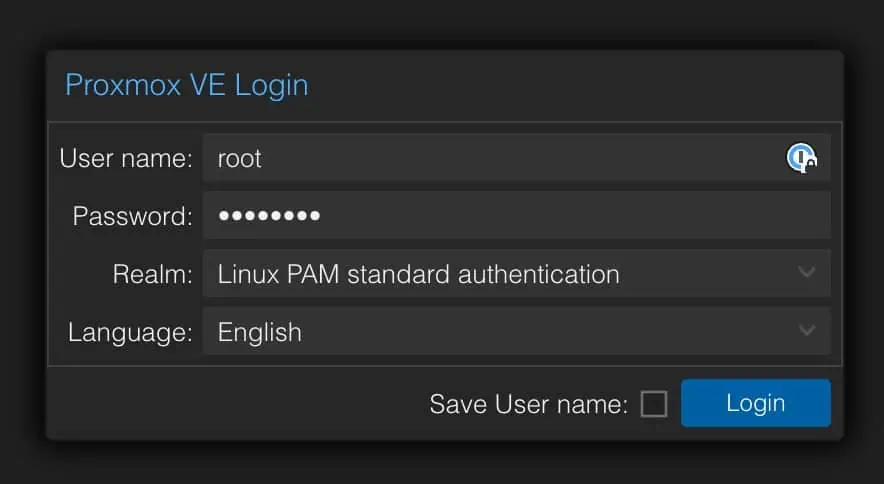

  2. Login with the root username the password you selected during the install process.
    Note: You will get a subscription warning. We will fix that in a second. Acknowledge the warning.

3. In the left pane click on the hostname of your Proxmox server.

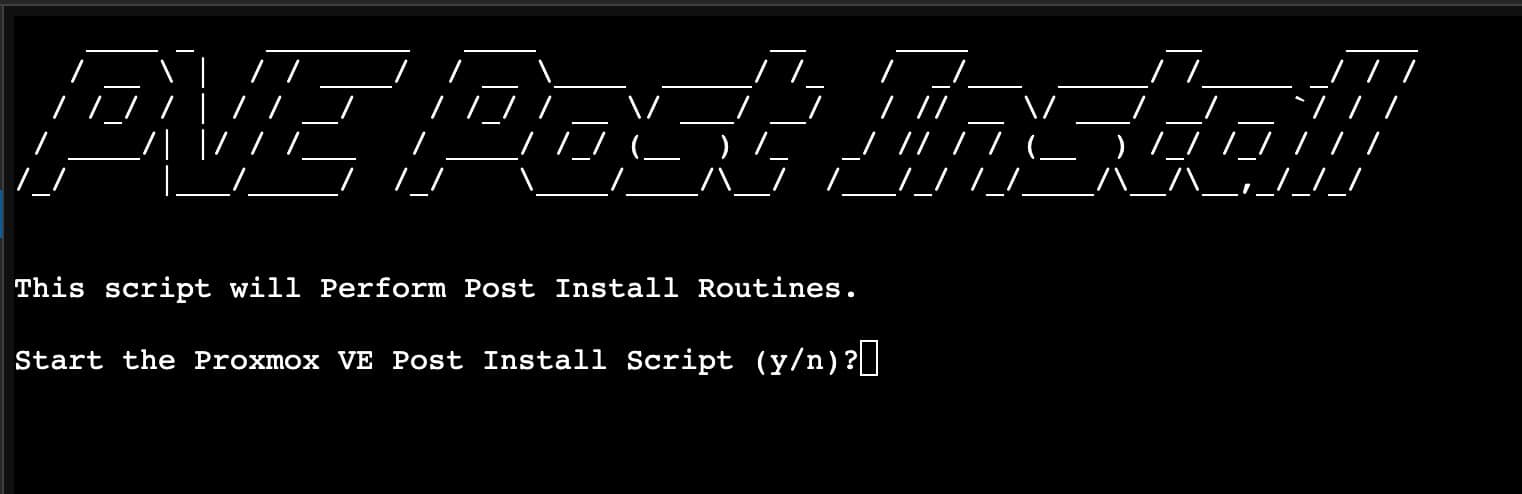

4. Click on Shell in the middle pane and paste in the following command to run the awesome tteck post install script:


					bash -c "$(wget -qLO - https://github.com/tteck/Proxmox/raw/main/misc/post-pve-install.sh)"

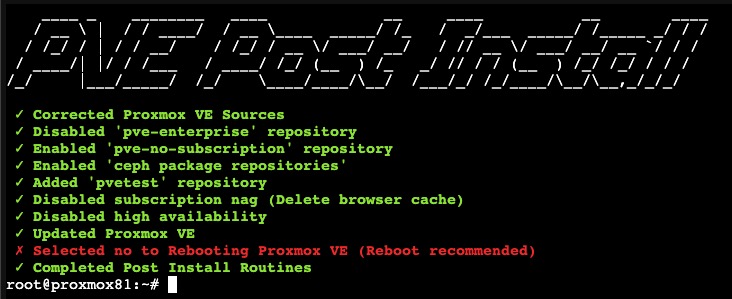

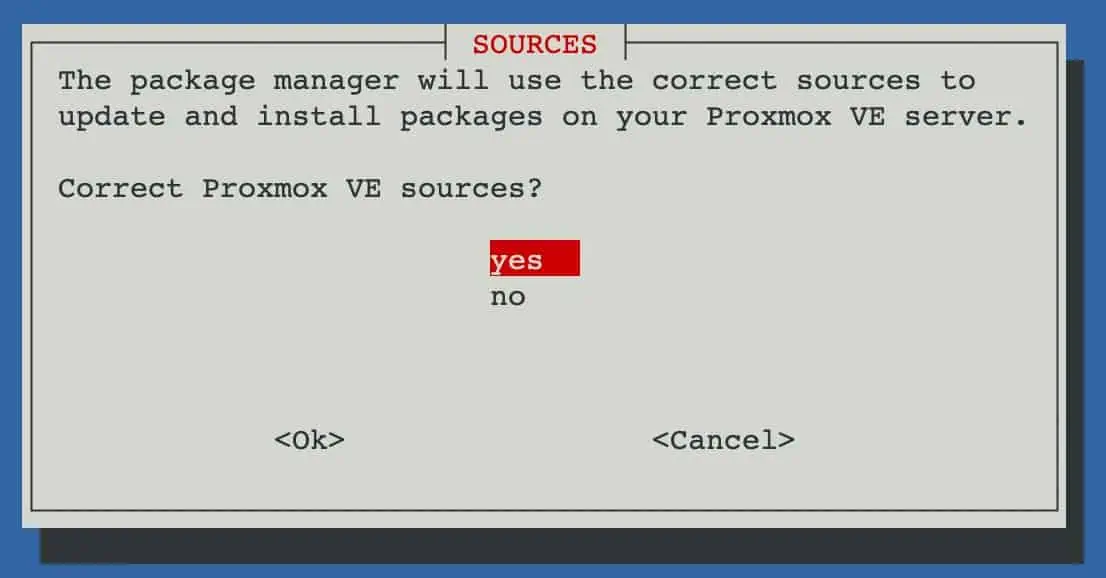

5. The tteck script will ask you a series of questions. Run the script and answer Y to all of the questions. Wait a few minutes for all of the updates to install.

6. When asked if you wish to reboot press enter on yes.

Intel Microcode Update (Optional)

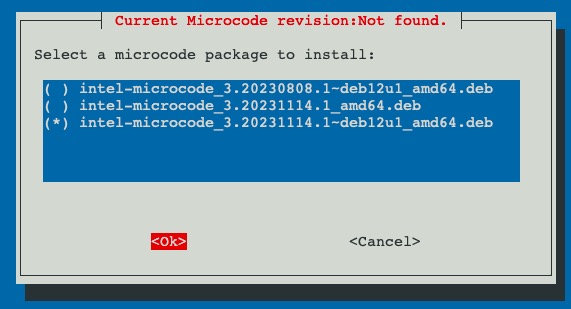

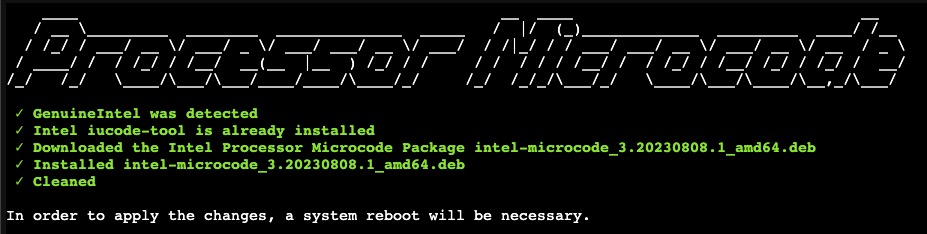

Intel releases new microcode for their processors from time to time. This is different from BIOS firmware, as the Intel microcode runs inside the processor. It can fix CPU bugs or make other changes, as needed. If you are running on an Intel system you can use the following tteck script to download the latest Intel microcode and install it. A reboot will be needed for the microcode to take effect.

Note: Sometimes the firmware list can be confusing, listing several options. I chose the latest firmware package, and I select the latest “deb” variant. Not all CPUs get the same firmware updates. So even if you chose, for example, the 20231114 version, after you reboot the Proxmox host the firmware your CPU is using might have an older date. This is OK.


					bash -c "$(wget -qLO - https://github.com/tteck/Proxmox/raw/main/misc/microcode.sh)"

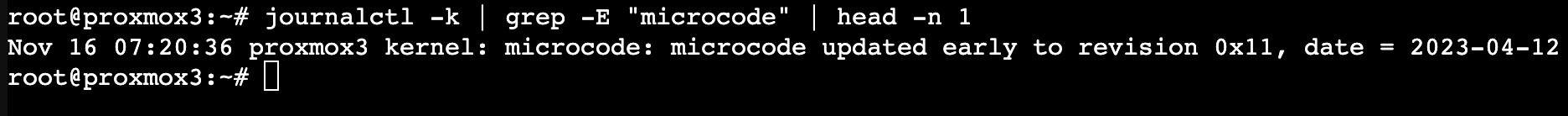

After the Proxmox host reboots you can run the following command to see if any microcode update is active. Not all CPUs need microcode updates, so you may well not see anything listed.


					journalctl -k | grep -E "microcode" | head -n 1



Installing Home Assistant OS (HAOS) VM

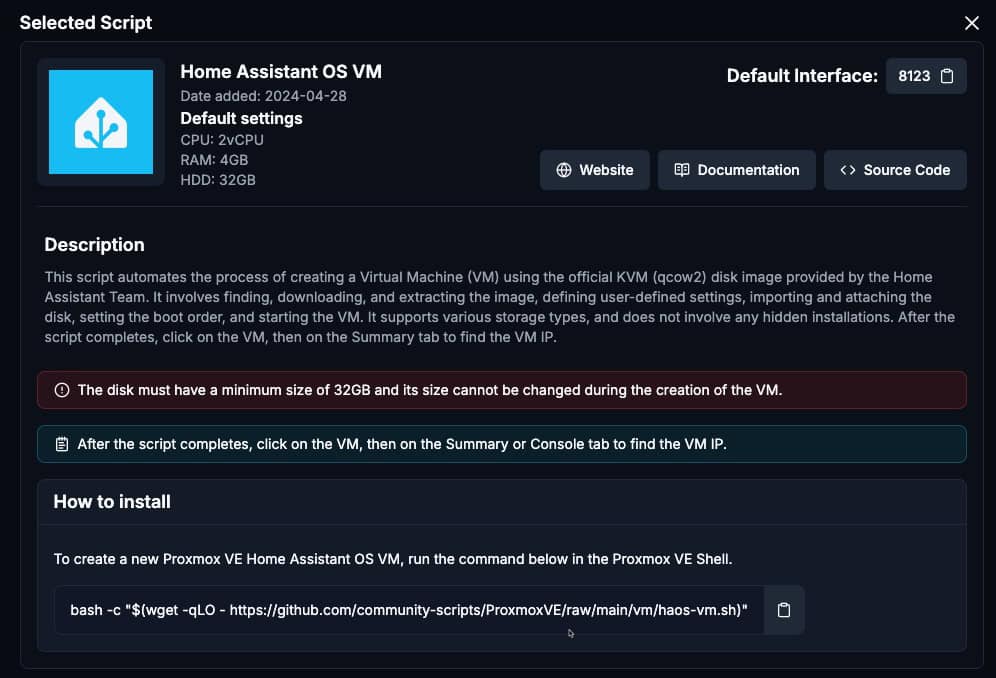

For the HAOS installation we will be using the awesome tteck Proxmox Helper Scripts

tteck Proxmox Helper Scripts
  1. Login to Proxmox and select your server in the left pane.
  2. Click on Shell in the middle pane.
  3. Enter the following command to start the HAOS install via the tteck Proxmox script.

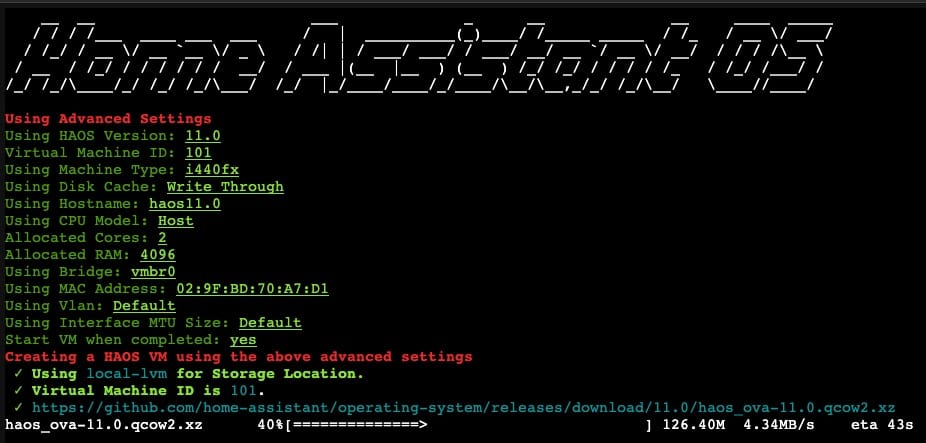

    Note: We will be using the advanced settings to optimize the configuration. The script automatically downloads the latest HAOS stable image, creates the Proxmox VM, and will configure the hardware and networking.

					bash -c "$(wget -qLO - https://github.com/tteck/Proxmox/raw/main/vm/haos-vm.sh)"

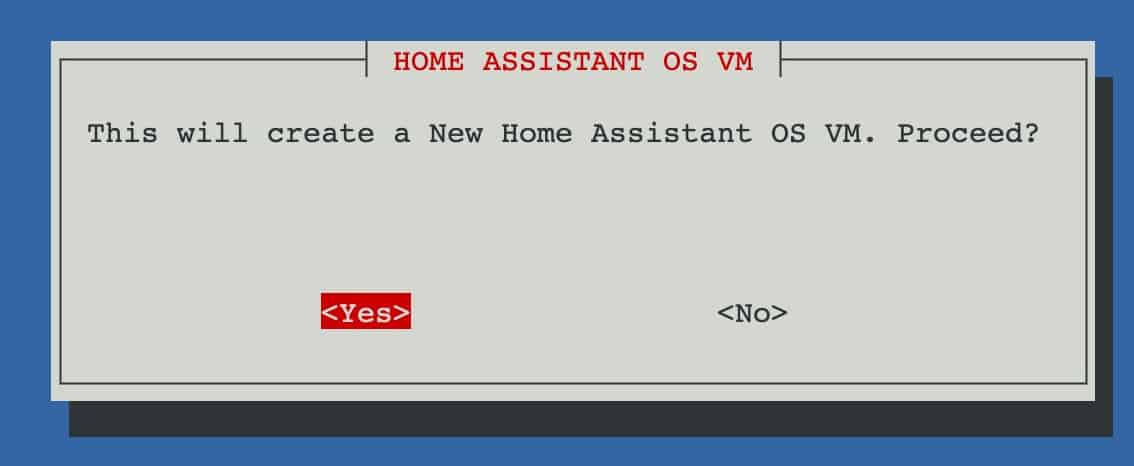

4. Press Enter to proceed.

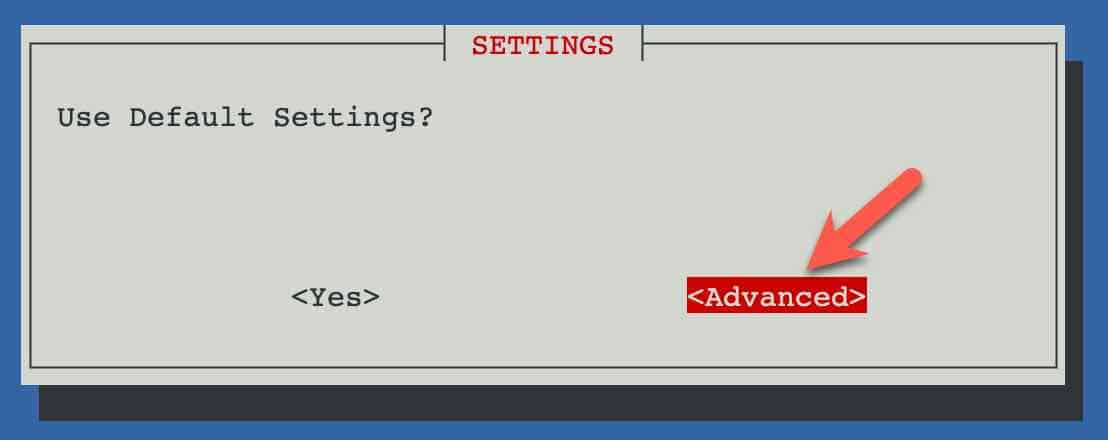

5. Select Advanced (NOT Yes).

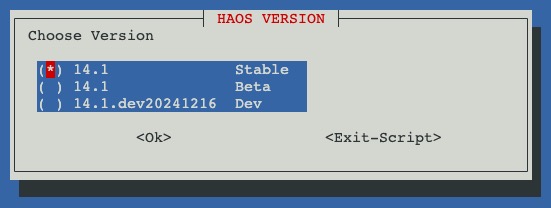

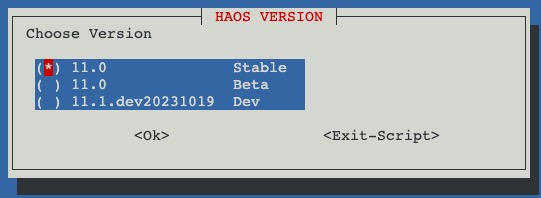

6. For the version chose latest stable version. HAOS is regularly updated, so the screenshot may not reflect what you see.

7. Leave the default Virtual Machine ID.
8. Leave the default Machine Type.

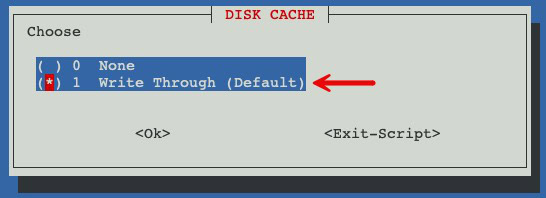

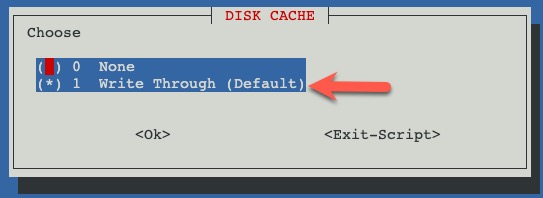

9. Verify Write Through Disk Cache is selected.

Explanation: If you use “none” then the HAOS filesystem or database(s) within HAOS can be corrupted during unexpected power loss to your server. Write through causes an fsync for each write. It’s the more secure cache mode, as you can’t lose data but it is also slower. In fact, Proxmox documentation gives you a warning for “None” (which is the Default): Warning: like writeback, you can lose data in case of a power failure.

10. Set the VM’s Hostname.

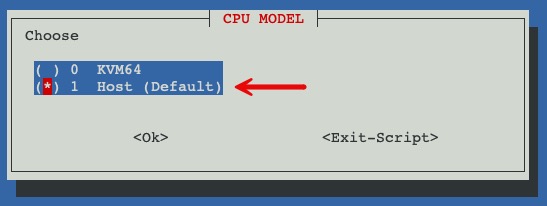

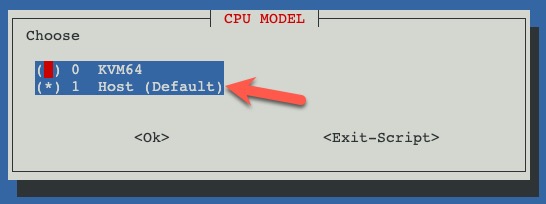

11. Verify CPU Model is Host.

Explanation: If you have a standalone Proxmox host (i.e. no multi-node clustering with Live Migration), use Host mode for the CPU Model. The KVM64 model hides some instructions such as MMX, AVX or AES instructions. This can have a performance impact on the VM. Per QEMU documentation: This [Host mode] passes the host CPU model features, model, stepping, exactly to the guest. This is the recommended CPU to use, provided live migration is not required.

12. Chose your Core Count (2 is fine).
13. Chose your RAM (I’d recommend 4-6GB).
14. Leave the Bridge.
15. Leave the MAC Address.
16. Leave the VLAN.
17. Leave the MTU Size.
18. Select Yes to start VM after creation.
19. Select Yes on Advanced Settings Complete.
20. If prompted to select the storage use the space bar to select the desired disk then tab to Ok.

Note: I STRONGLY urge you to use local Proxmox storage (e.g., local-lvm), not storage backed by a NAS. If there’s a network hiccup or the NAS goes offline you could easily end up with a corrupted VM.

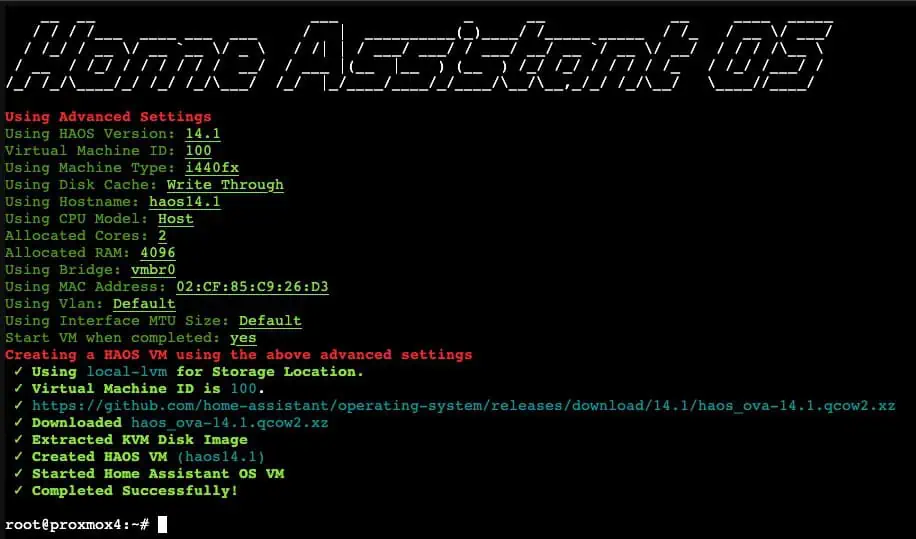

21. Wait for the installer to complete. This will take a few minutes.

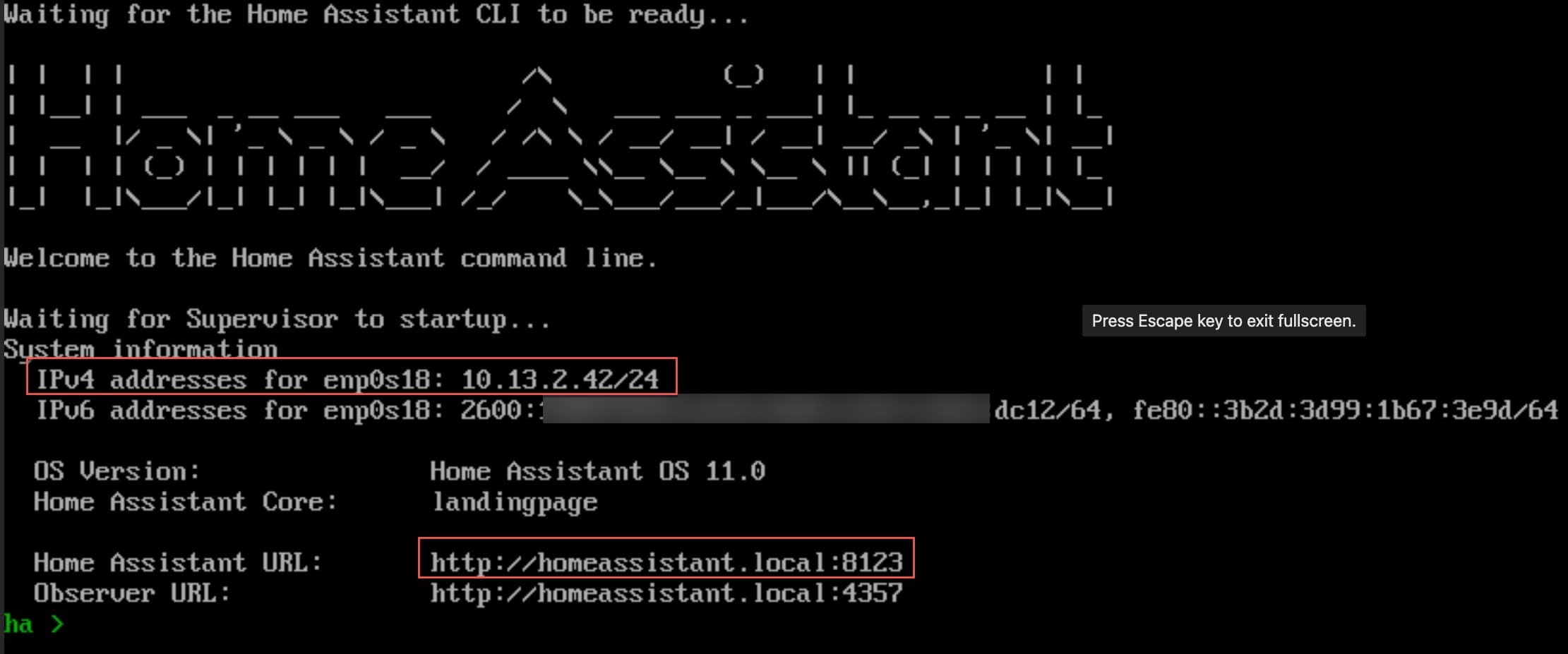

22. Once the VM is created, click on it in the left pane and then select console in the middle pane. Note the IP address and port number (8123).

23. Open a browser and open a HTTP connection (http://IP:8123).
24. Depending on the speed of your server, you may see a Preparing Home Assistant screen for several minutes. Wait until you see Welcome!

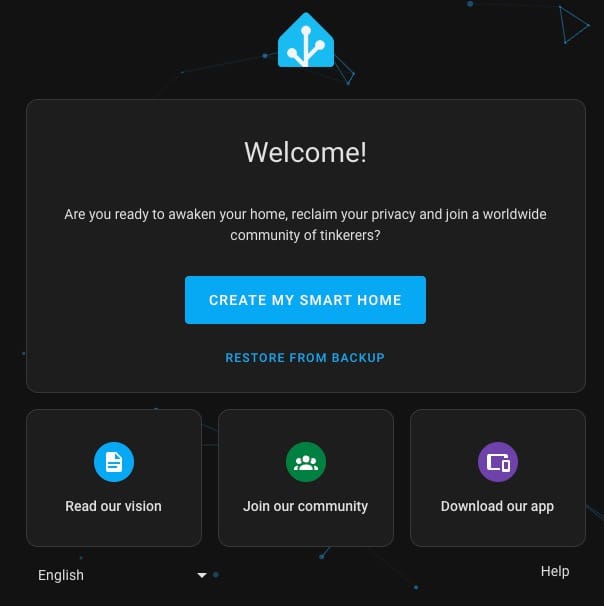

25. Click on Create my smart home.

26. On the Create User screen enter your nameusername and password. Click Create Account.
27. On the Home Location screen enter your home address. The map should now show your home neighborhood. Click Next.

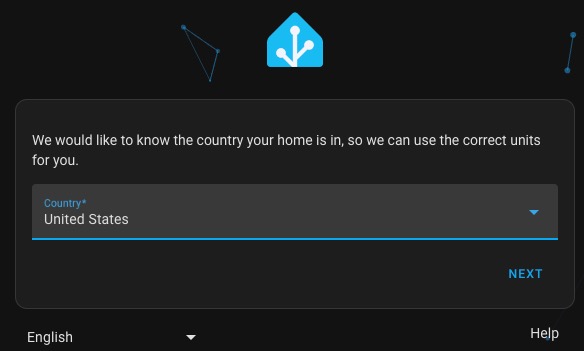

28. Select your Country. Click Next.

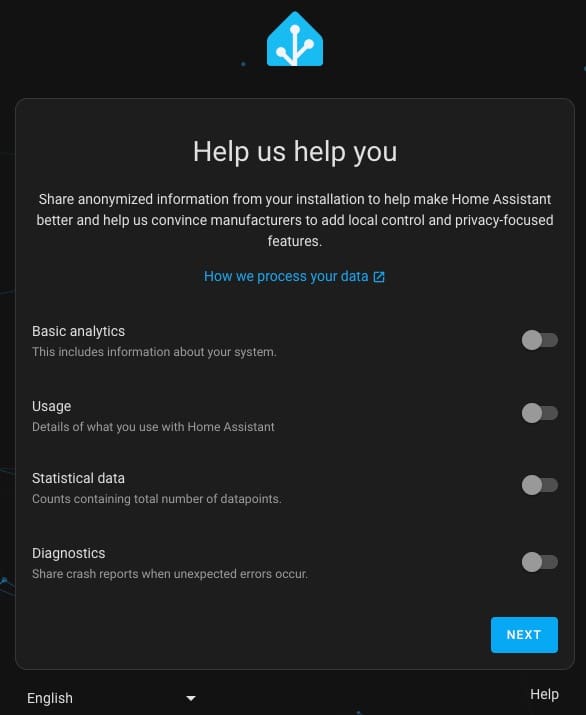

29. Select what, if any, analytics you went to send back to the Home Assistant mother ship. Click Next.

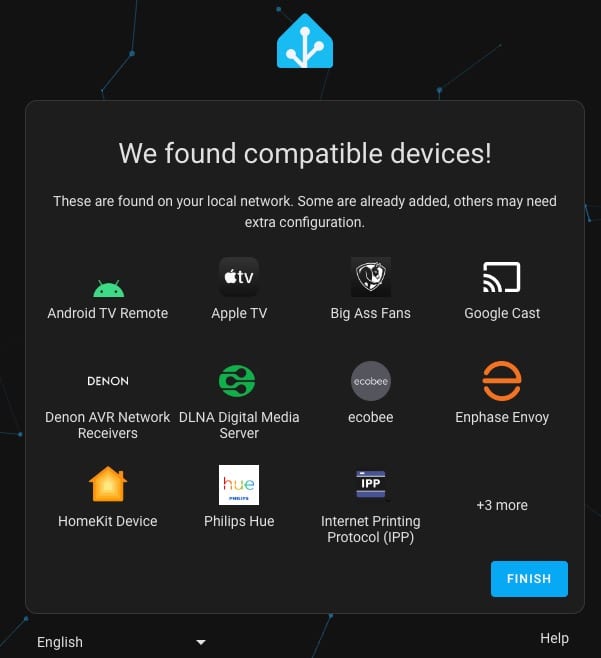

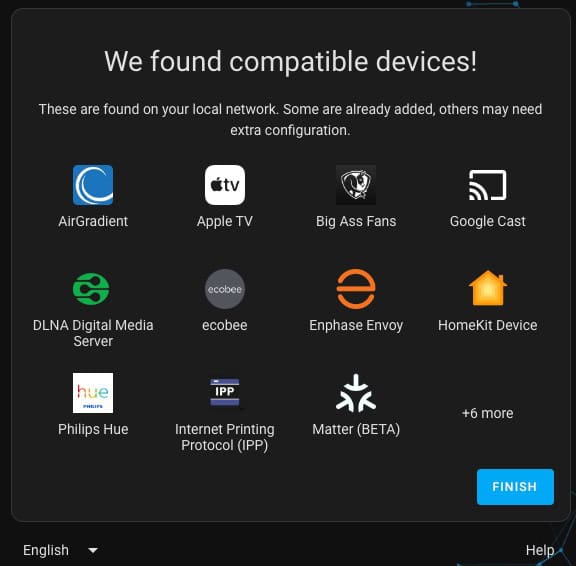

30. On the next screen HA will show you all of the devices and services that it found on your network. Click Finish

Setting Static IP Address (Recommended)

I would strongly recommend that HAOS be configured to use a static IP address. You can do this by either a DHCP reservation in your router, or set a static IP in the Home Assistant user interface.

  1. In the left pane click on Settings -> System -> Network. Click on IPv4.
  2. Change to Static and enter the details.
  3. Change the address you are connecting to in your bowser and verify HA is using the new IP.

Matter uses IPv6, so I would suggest keeping IPv6 set to Automatic and NOT Disabled

Blocked DNS over HTTPS Workaround

If you are blocking OUTBOUND DNS over HTTPS, then you might run into a HA bug where HA floods your firewall with TENS OF MILLIONS of DNS queries indefinitely. In order to work around this bug, we will install the SSH add-on and then modify the HA DNS configuration.

  1. Click on your name in the lower left panel.
  2. In the right pane enable Advanced Mode.
  3. Click on Settings in the left pane, then Add-ons.
  4. Click on Add-on store in the lower right
  5. Search for “ssh” and select the Advanced SSH & Web Terminal. Click on it.
  6. Click Install.
  7. After it installs, click on Show in sidebar.
  8.  Click on Configuration at the top of the screen.
  9. Enter the username and password that you configured on the initial HA setup screen. Click on Save.

10. Click on the Info tab at the top left of the screen.
11. Click on Start.
12. In the left pane in HA click on Terminal.
13. Run the following two commands:


					ha dns options --fallback=false
ha dns restart



14. Re-enable the DoH block rule on your firewall.
15. Monitor your network to verify your firewall is not being flooded with DNS requests.

USB Passthrough to HAOS (Optional)

If you have any USB dongles for radios such as z-wave, Zigbee, Thread, etc, we need to pass it through to the HAOS VM. This is optional, and not needed if you have no USB devices to passthrough. I am using the Home Assistant SkyConnect Zigbee/Thread/Matter USB dongle.

  1. Connect your USB dongle to your server.
  2. In the left pane click on your HAOS VM.
  3. In the middle pane click Hardware.
  4. Click on Add then USB Device.

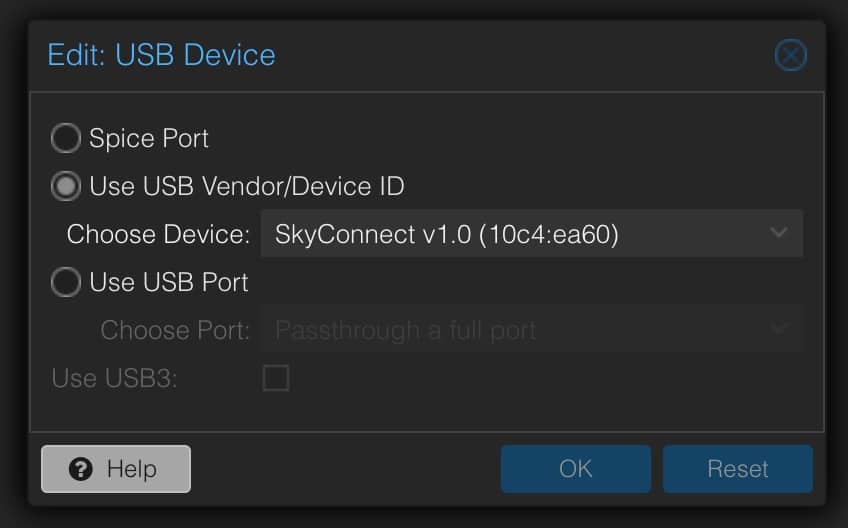

  5. Select Use USB Vendor/Device ID.
  6. Chose the USB device to passthrough.

7. In the upper right hand corner of the VM pane click on the down arrow next to Shutdown and select Reboot.

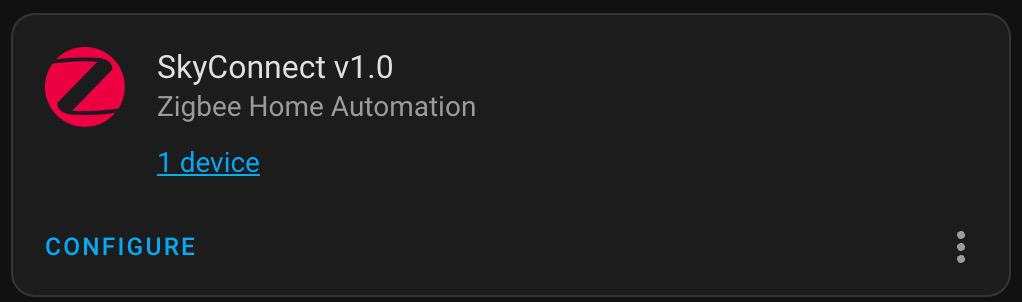

8. Home Assistant will auto-discover the dongle after the reboot.

Optimize CPU Power (Optional)

Depending on your server hardware and how concerned you are about power consumption, you might want to tweak how Proxmox handles CPU scaling. I have a 12th Generation Alder Lake CPU (i5-1235U), which idles at 8w-10w according to a smart power plug.

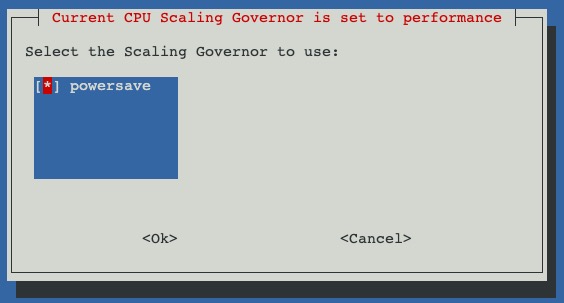

Run the tteck script below and it will show you what your current scaling governor is, and you can elect to change it. Make sure you select the enable cron job to make it persist across reboots.


					bash -c "$(wget -qLO - https://github.com/tteck/Proxmox/raw/main/misc/scaling-governor.sh)"



graphical user interface

Check SMART Monitoring (Optional)

Proxmox should enable SMART disk monitoring by default. But it’s a good idea to check the SMART health stats to make sure your media isn’t having any issues. On rare occasions a motherboard may not support SMART, so it’s always best to check that it is working.

Check SMART Health:

  1. In the left pane change to Server View. Click on your Proxmox host.
  2. In the middle pane click on Disks.

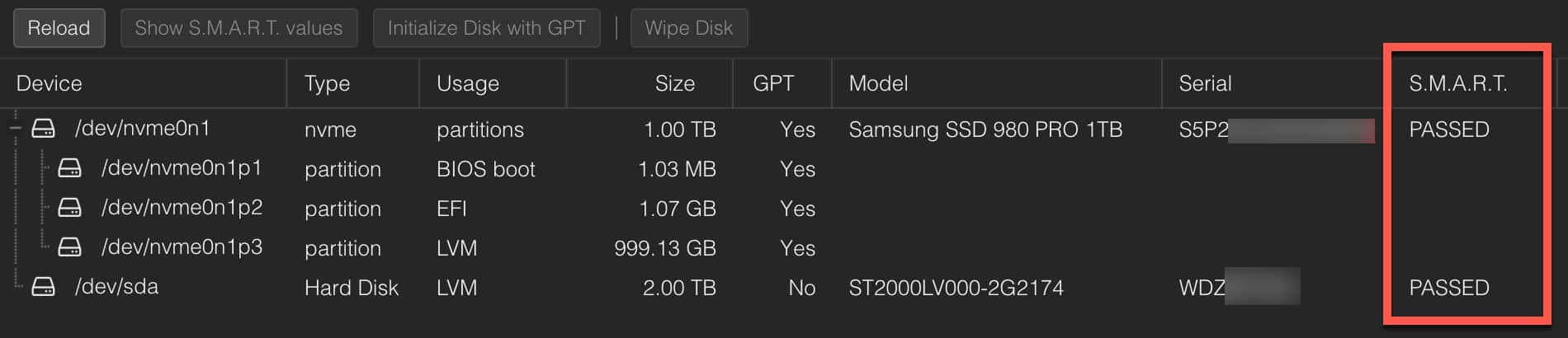

  3.  In the right pane you should see your disk(s) and SMART status. You can click on the main disk device then click Show SMART values to further inspect the health.

VLAN Enable Proxmox (Optional)

Out of the box Proxmox is not VLAN aware. Even if you don’t need VLANs right now, you can still enable a check box to make Proxmox VLAN aware. Then down the road when you want to setup VLANs, it’s one less thing to remember to do and VLANs will just work.

To enable VLANs:

  1. In the left pane change to Server View. Click on your Proxmox host.
  2. In the middle pane click on Network (under system).

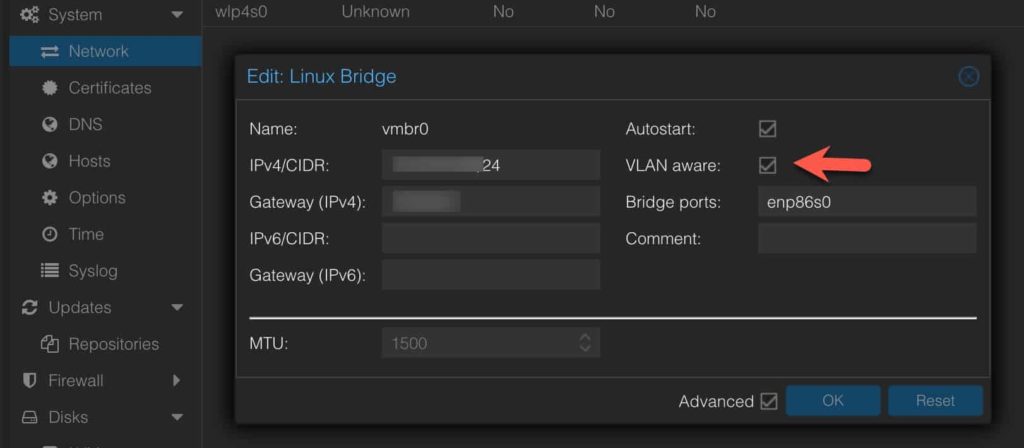

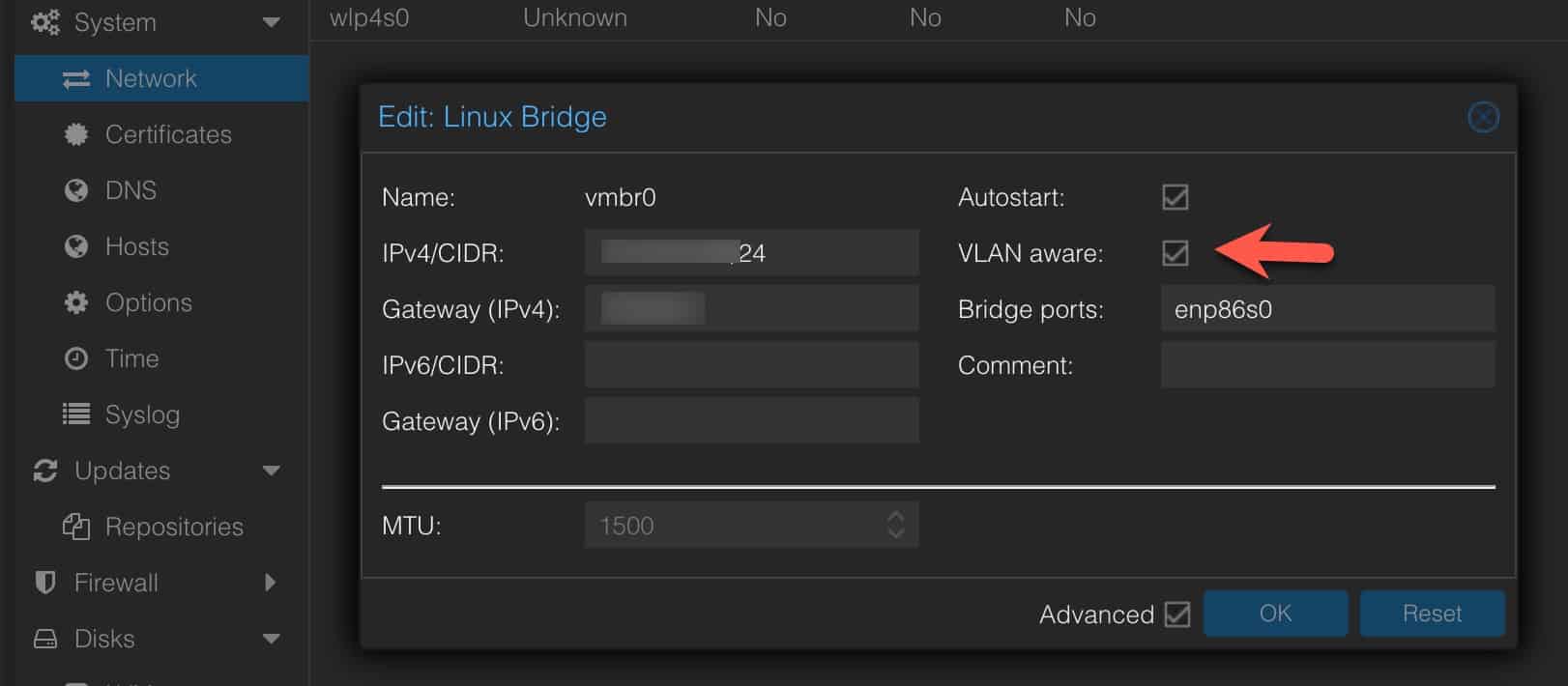

  3. Click on Linux Bridge (vmbr0). Click on Edit.
  4. Tick the box next to VLAN aware and click OK.
Tip: If you install other services on your Proxmox server like HomeBridge, Scrypted, etc. then turning on VLAN enable might cause an issue with IGMP snooping on your physical switches. I had to disable IGMP snooping on my QNAP switch or Matter would become unstable. However, a newer TP-Link business class switch had no such issues so using IGMP/MDL snooping worked without a hitch. This would only happen with buggy switch firmware, so you shouldn’t run into the issue.

Proxmox Let's Encrypt SSL Cert (Optional)

If you want to secure Proxmox with a trusted SSL certificate and even add Proxmox as an iFrame to Home Assistant follow my post Proxmox Let’s Encrypt SSL: The Easy Button

Proxmox Two Factor Setup (Optional)

Enhancing the security for your Proxmox accounts should be a priority. Thankfully Proxmox makes it easy to add Two Factor authentication.

  1. In the left Pane click on Datacenter.
  2. In the middle pane under Permissions click Two Factor.
  3. Click on Add, TOTP.
  4. Add a description at the top, then scan the QR code with your password manager (1Password recommended). At the bottom of the window enter the validation number.
  5. Click Add again. Click Recovery Keys.
  6. Click Add.
  7. Copy the recovery keys to your password manager.

Proxmox 8.1 Notifications (Optional)

New to Proxmox 8.1 is centralized notification configuration. You now have one place to setup SMTP, Sendmail and Gotify notifications.

  1. In the left pane click on Datacenter.
  2. In the middle pane at the bottom click on Notifications.
  3. In the right pane click on Add.
  4. Chose the notification method you want to configure. I used SMTP.
  5. Configure the parameters as needed, and test.

Proxmox Monitoring (Optional)

If you want to monitor the Proxmox server status (uptime, CPU usage, package updates, etc.), then use the HACS Proxmox add-on. This compliments the Glances Monitoring section below.

Glances Monitoring (Optional)

If you want to monitor the hardware health and performance of your Proxmox hosts in Home Assistant, you can use Glances. It’s a free tool that can be easily setup in just a few minutes. Follow my guide below to setup Glances. This will surface a lot of hardware sensor information such as temperature for each of your CPU cores, and many other stats. This compliments the Proxmox monitoring discussed in the previous section.

Home Assistant: Monitor Proxmox with Glances

Summary

You now have Home Assistant OS (HAOS) running on Proxmox VE 8.1! The whole process is pretty easy and with the tteck scripts, makes creating the HAOS VM a snap. Tteck has a bunch of other Proxmox scripts to setup a variety of VMs and LXC containers. Visually Proxmox VE 8.1 is pretty much the same as 8.0. However, the new console setup process bypasses any possible graphical install issues with newer generation GPUs. This is a welcomed change. Plus now that the Linux Kernel 6.5 is the default, makes the installation that much quicker and easier.

Buy me a coffee

Related Posts

Subscribe
Notify of
0 Comments
Inline Feedbacks
View all comments
