Welcome to Part 3 of the 15 part vCenter 5.1 installation series, installing vCenter SSO SSL Certificates. IMPORTANT: Now that VMware has released the vCenter Certificate Automation Tool, I suggest you skip installing trusted SSL certificates during the install process and use the tool to do them post install. It’s less error prone, and then you will know it is done correctly. The tool has a lot of known issues, so some of you may need to execute the steps manually. If you want to use this new VMware tool then skip this post and proceed directly to Part 4.
If for some reason you can’t or don’t wish to use the new VMware tool, you can follow this post to update the SSO SSL certificate. It’s tedious and somewhat painful, so I’d really recommend you consider using the tool. You can find the official VMware KB article which covers these steps here.
Before we get started, listed below are the other related articles in this series:
Part 1 (SSO Service)
Part 2 (Create vCenter SSL Certificates)
Part 4 (Install Inventory Service)
Part 5 (Install Inventory Service SSL Certificate)
Part 6 (Create vCenter and VUM Databases)
Part 7 (Install vCenter Server)
Part 8 (Install Web Client)
Part 9 (Optional SSO Configuration)
Part 10 (Create VUM DSN)
Part 11 (Install VUM)
Part 12 (VUM SSL Configuration)
Part 13 (VUM Configuration)
Part 14 (Web Client and Log Browser SSL)
Part 15 (ESXi Host SSL Certificate)
Manual SSO Certificate Replacement
During the execution of Part 2, a number of certificate files were generated. For a short refresher, here’s what we have so far:
chain.pem – Required for VMware automated certificate manager
root-trust.jks – Java keystore with root certificates
rui.crt – Minted PKCS#7 x.509 certificate from your trusted CA
rui.csr – Base-64 encoded certificate signing request (CSR)
rui.key – Private RSA 2048-bit key
rui.pfx – Password protected PKCS #12 certificate file, private key, and root CA certs
SSO.cfg – OpenSSL certificate request configuration file for the SSO service
server-identity.jks– Java keystore with root certificates
vCenter SSO SSL Certificate Replacement Procedures
If you used my pre-staging script, it already has created this directory and copied the required files. If you didn’t use my pre-staging script, from the D:\certs\SSO directory copy: rui.crt, rui.key, rui.pfx, root-trust.jks, and server-identity.jks into this directory. From the D:\certs directory copy root64.cer into the same SSL directory.

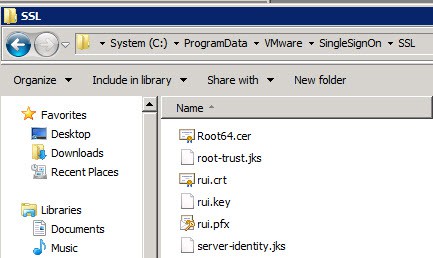

Your directory should now look like the following screenshot:
2. To reconfigure the vCenter SSO SSL certificates we first must list the service records for the Group Check, SSO and Security Token Services. Open an elevated command prompt and type the following commands.
SET JAVA_HOME=C:\Program Files\VMware\Infrastructure\jre
cd /d C:\Program Files\VMware\Infrastructure\SSOServer\ssolscli
ssolscli.cmd listServices https://Server.FQDN:7444/lookupservice/sdk

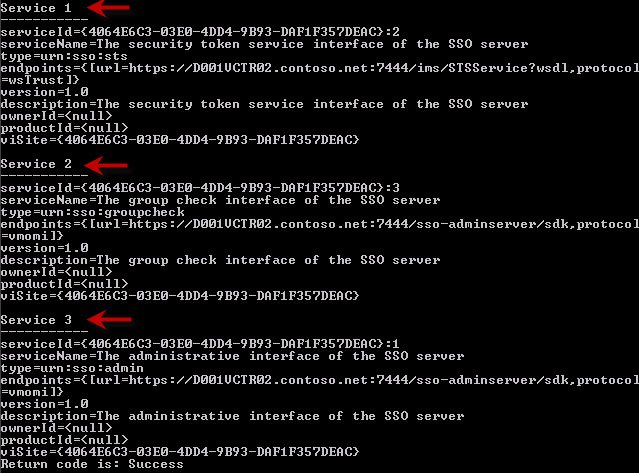

At this point you should see a lot of output on the screen and three “Service” sections with a bunch of details. Be sure to use the FQDN of the server, or the command may fail.
3. Use Notepad to create three separate text files, one for each of the services (STS, group check, SSO). I created three text files (sts.properties, gc.properties, admin.properties) in D:\Certs. The content of each file is shown below. Of course change your uri hostname to that of your SSO server, and the ssl variable to the proper path of the root certificate.
The “protocol” field is extremely critical and NOT the same for all three services. Using “wsTrust” for all three result in a smoking hole and a dead SSO server.
[service] friendlyName=STS for Single Sign On version=1.0 ownerId= type=urn:sso:sts description=The Security Token Service of the Single Sign On server. [endpoint0] uri=https://SSOServer.Domain:7444/ims/STSService ssl=c:\ProgramData\VMware\SingleSignOn\SSL\Root64.cer protocol=wsTrust
[service] friendlyName=The group check interface of the SSO server version=1.0 ownerId= type=urn:sso:groupcheck description=The group check interface of the SSO server [endpoint0] uri=https://SSOServer.Domain:7444/sso-adminserver/sdk ssl=c:\ProgramData\VMware\SingleSignOn\SSL\Root64.cer protocol=vmomi
[service] friendlyName=The administrative interface of the SSO server version=1.0 ownerId= type=urn:sso:admin description=The administrative interface of the SSO server [endpoint0] uri=https://SSOServer.Domain:7444/sso-adminserver/sdk ssl=c:\ProgramData\VMware\SingleSignOn\SSL\Root64.cer protocol=vmomi

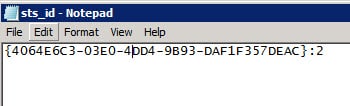

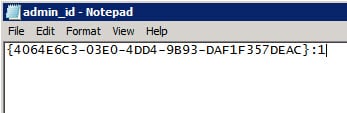

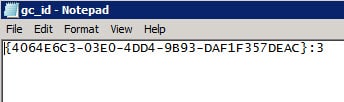

3. Create three more text files (sts_id, gc_id, admin_id) in the D:\Certs directory. This time we need to put the unique serviceID shown in step 2 (which will NOT be the same for your install, so don’t blindly use my IDs below). Do not enter any additional information to the contents of the file.

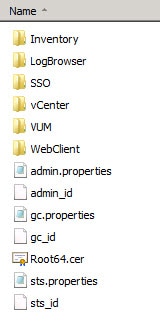

4. As a check point in our configuration process, you should now have the following files in your Certs directory. I would also strongly suggest taking another snapshot of your SSO VM at this point, in case the certificate replacement process goes south and you need to recover to a known state. Certificate information is also stored in the SSO SQL database, so I would urge that you use SQL Studio to do a SSO database backup as well.

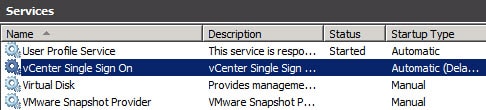

5. Stop the vCenter Single Sign On service via the Windows Server Manger.
6. Navigate to: C:\Program Files\VMware\Infrastructure\SSOServer\security and backup the root-trust.jks and server-identity.jks files. Replace these files with your versions (from D:\Certs\SSO).

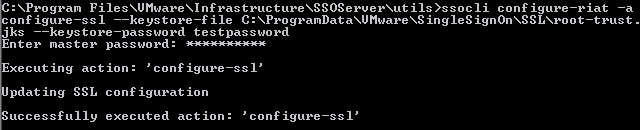

7. Open an elevated command prompt and type the following commands. When prompted for the master password, enter the SSO password you entered during the SSO installation process.
SET JAVA_HOME=C:\Program Files\VMware\Infrastructure\jre cd /d C:\Program Files\VMware\Infrastructure\SSOServer\utils ssocli configure-riat -a configure-ssl --keystore-file C:\ProgramData\VMware\SingleSignOn\SSL\root-trust.jks --keystore-password testpassword
8. Re-start the vCenter Single Sign On service and wait a couple of minutes.
9. Open a web browser and open:
View the vCenter SSO SSL certificate and validate that it’s your trusted certificate, not the VMware self-signed certificate.
10. To bind the trusted SSL certificate to each of the three services issue the commands below in the same command prompt Window as above. Note that “updateService” is CASE SENSITIVE.
cd /d C:\Program Files\VMware\Infrastructure\SSOServer\ssolscli
ssolscli.cmd updateService -d https://SSOServer.Domain:7444/lookupservice/sdk -u admin@System-Domain -p YourPassword -si D:\certs\sts_id -ip D:\certs\sts.properties

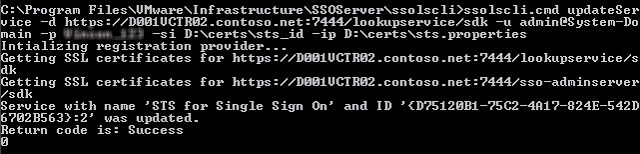

If the command is successful you will see the following. Repeat the process for the remaining two services.
ssolscli.cmd updateService -d https://SSOServer.Domain:7444/lookupservice/sdk -u admin@System-Domain -p YourPassword -si D:\certs\gc_id -ip D:\certs\gc.properties
ssolscli.cmd updateService -d https://SSOServer.Domain:7444/lookupservice/sdk -u admin@System-Domain -p YourPassword -si D:\certs\admin_id -ip D:\certs\admin.properties
11. If you are lucky at this point you have successful return codes for all three commands. However, you may not be out of the woods. Restart the vCenter Single Sign on service and wait a couple of minutes. Re-run step two to list all three services and verify everything is successful.
If you get errors such as “Return Code is: OperationFailed”, then Houston, we have a problem. If you see “unable to connect to server” errors while trying to list the services, wait a few minutes and try again.
Update Trusted Certificate Store
Note: You must pay close attention to the version of OpenSSL you are using, or you could end up with the wrong hashes. OpenSSL 1.x has a different default hashing algorithm than the 0.9.8 tree. I show both command lines below, which in my experience, produce the same hashes. I’ve tried 0.9.8y, 1.0.1c and 1.0.1e all with the same hashing results, assuming you use the proper switches. For compatibility with the vCenter Certificate Automation tool you should only use OpenSSL 0.9.8.
1. In Windows Explorer navigate to C:\ProgramData\VMware and see if you have a SSL directory. If not, create one (all CAPS).
2. Copy your Root64.cer file into C:\ProgramData\VMware\SSL and rename it ca_certificates.crt. If you have intermediary CAs, the ca_certificates.crt file should have all CA certificates appended to it. This should already be the case if you followed Part 2 of my guide, under the Download Root Certificates section. Double check the ca_certificates file ends in “crt” NOT “cer”.
3. Compute the hash of your Root64.cer file if you have a single CA hierarchy. If you have intermediary CAs, compute the hash of your Root64-1.cer (root CA) in this step. To do this with OpenSSL 1.0.0 and later use the following command:
c:\OpenSSL-Win32\bin\openssl x509 -subject_hash_old -noout -in D:\certs\Root64.cer
If you are using an OpenSSL version prior to 1.0.0, such as 0.9.8 use this command:
c:\OpenSSL-Win32\bin\openssl x509 -subject_hash -noout -in D:\certs\Root64.cer
4. If you have a single CA (no intermediary) copy your Root64.cer file into the SSL directory and rename it using the hash value from the previous step, and change the file extension to 0 (zero). For example, I would copy D:\certs\root64.cer to the SSL folder in step 2, and rename it to 97527d09.0.
If you have intermediary CAs, then copy the Root64-1.cer (your root cert only) file into the SSL folder and rename it using the same methodology. You also need to compute the hash for any intermediary CAs (e.g. Root64-2.cer) and copy those files into the SSL directory and rename them.
In short, each hash file should have only the contents of a single CA certificate. They cannot be appended like they are in the ca_certificates.crt file. Do not create a hash file for your concatenated Root64.cer file, when you have intermediary CAs.
Next up is part 4, Installing the vCenter Inventory Service.
