vCenter 5.1 U1 Installation: Part 12 (VUM SSL Certificate)

Welcome to the vSphere 5.1 Update 1 VUM SSL certificate replacement procedures. In Part 11 we installed VMware vCenter Update Manager (VUM) 5.1 Update 1. Recently VMware released the vCenter Certificate automation tool, which helps lessen the pain associated with replacing the self-signed certificates with trusted certificates. I recommend you use that tool, instead of pre-staging certificates or replacing them manually.

However, in v1.0 of the VMware tool it does NOT support updating the VUM SSL certificate if you’ve registered VUM to vCenter using the vCenter FQDN. Since I would consider it a best practice to use the vCenter FQDN (vice IP address), we need to manually replace the VUM certificate until an update to the tool is released. I recommend replacing the VUM certificate only after you’ve gone through all 15 parts of this install series, and run the VMware vCenter certificate automation tool. If you have completed all those steps, then proceed with this article. If not, then jump ahead to Part 13 and come back here later.

If you want to refer to the official VMware article for replacing the VUM SSL certificate, you can find the procedure here. Thankfully it’s not difficult, so you shouldn’t have any problems.

Before we get started, listed below are the other related articles in this series:

Part 1 (SSO Service)
Part 2 (Create vCenter SSL Certificates)
Part 3 (Install vCenter SSO SSL Certificate)
Part 4 (Install Inventory Service)
Part 5 (Install Inventory Service SSL Certificate)
Part 6 (Create vCenter and VUM Databases)
Part 7 (Install vCenter Server)
Part 8 (Install Web Client)
Part 9 (Optional SSO Configuration)
Part 10 (Create VUM DSN)
Part 11 (Install VUM)
Part 13 (VUM Configuration)
Part 14 (Web Client and Log Browser SSL)
Part 15 (ESXi Host SSL Certificate)

Updating VUM SSL Certificate

1. Backup all the files in the directory below. Copy the rui.key, rui.crt and rui.pfx files from your D:\Certs\VUM directory and replace the files in this directory:

C:\Program Files (x86)\VMware\Infrastructure\Update Manager\SSL

2. Stop the VMware vSphere Update Manger Service.

3. In the C:\Program Files (x86)\VMware\Infrastructure\Update Manager directory launch the VMwareUpdateManagerUtility.exe application.

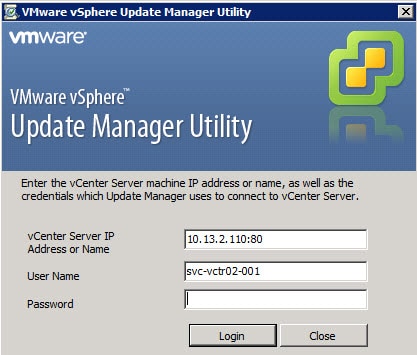

4. Login to the vCenter server using proper credentials.

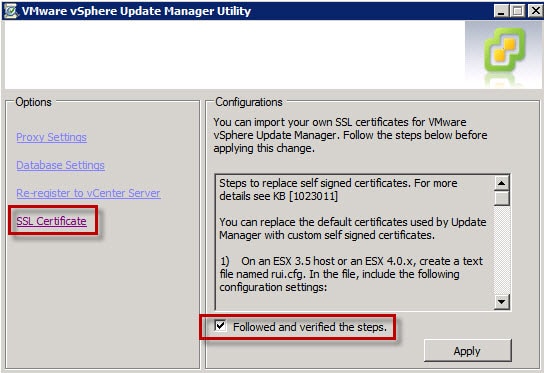

5. Click on the SSL Certificate option on the left side then check the box on the right side and click Apply.

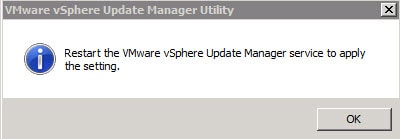

6. If all goes well you should see the window below. Restart the service as directed.

In Part 13 we perform basic VUM configuration to add the HP patch depot and attach built-in baselines for VMs and ESXi hosts.
