SQL 2017 Always-On AG Pt. 4: Node A SQL Installation

​This is Part 4 of the SQL 2017 Always-On Availability Group installation series. In this post we will manually install SQL 2017 on the first node of the cluster. We will then capture an answer file for SQL, which will be used ​for an unattended SQL installation on Node B (Part 5).

​SQL 2017 Node A Installation

​1. Mount the SQL 2017 Enterprise Edition ISO to the first VM and launch the installer.

2. On the left side click on Installation, then click on the top option "New SQL server stand-alone.."

3. On the Product Key screen accept/enter your key.

4. On the License Terms screen check the box to accept the terms.

5. On the ​Microsoft Update​ screen configure as you see fit.

6. On the ​Install Rules​ screen verify everything is green, with the possible exception of the Windows firewall which may be yellow (normal).

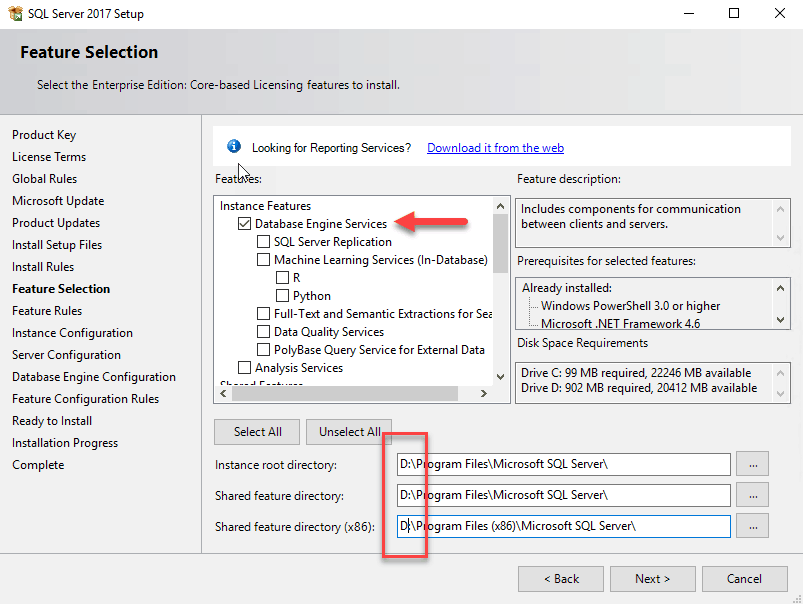

7. ​​​​​​On the ​Feature Selection​ screen select at least the Database Engine Services​​​​ ​option. If you need additional features, select them. At the bottom of the window change the SQL binary installation paths as needed.​​​

​8. On the ​Instance Configuration​ screen configure your instance as needed. For this series I'm leaving the default settings.

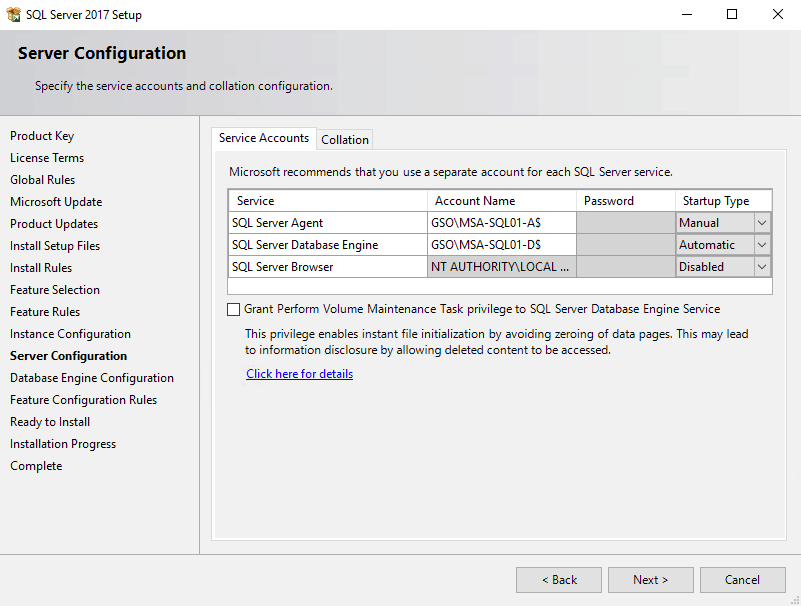

9. On the ​Server Configuration​ set the agent and database engine accounts to their respective gMSA. ​​​​​​No password is needed since that is handled by Windows. There's no need to check the box for granting Volume Maintenance privileges as we manually did that in a previous post by configuring user rights.

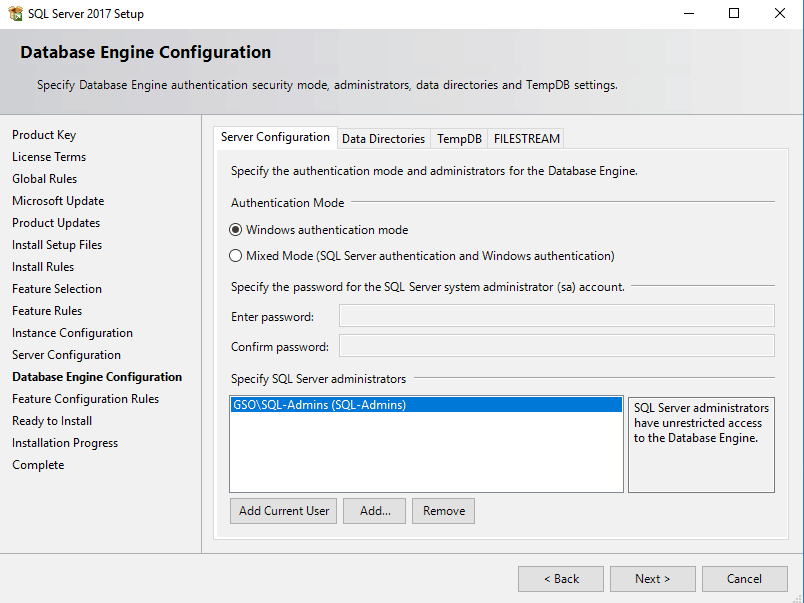

​10. On the ​Database Engine Configuration​ screen select the authentication mode and add the AD SQL Admin group you are using to the list of administrators.​​​ Windows authentication mode is the most secure, so only select mixed mode if you know an application requires it.

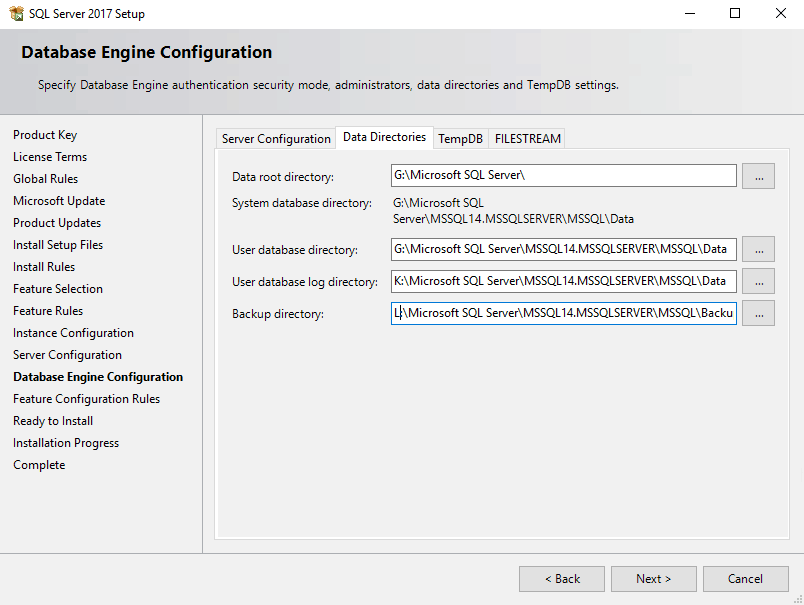

​11. Configure the SQL database engine directories as desired. I'm using the drives covered in previous posts.

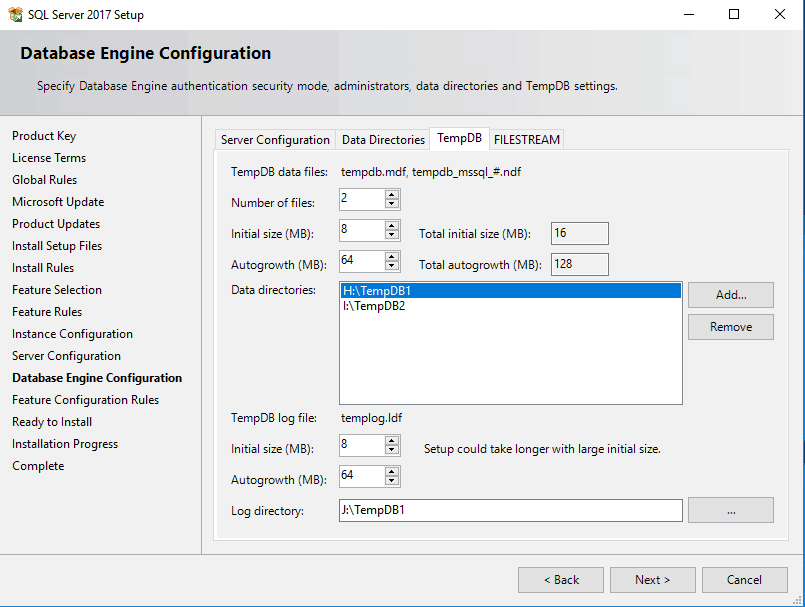

​12. TempDB configuration will vary wildly between instances. Some applications make very heavy use of TempDB, while others barely use it. SQL 2017 also bases the initial number of TempDB files on the quanity of CPUs assigned to the VM. The key here is to make sure you have an adequate number of TempDB files, and if you are using Nutanix storage, put them on separate disks. Make sure you set all the proper paths including the Log directory.

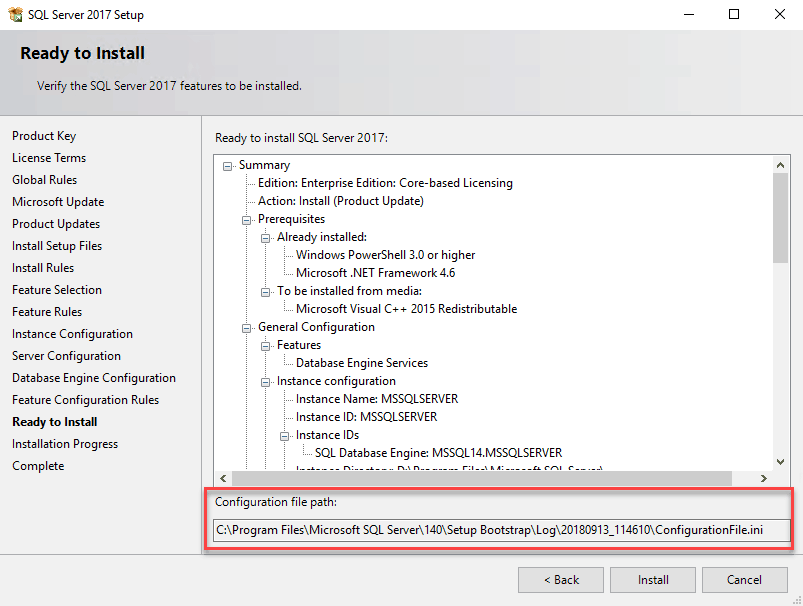

​13. On the ​Ready to Install ​screen copy the configuration file path to the clipboard, as we will need it later.​​​ ​Once the installation starts, browse to the INI file and copy it to a safe location so we can use it in the next post.

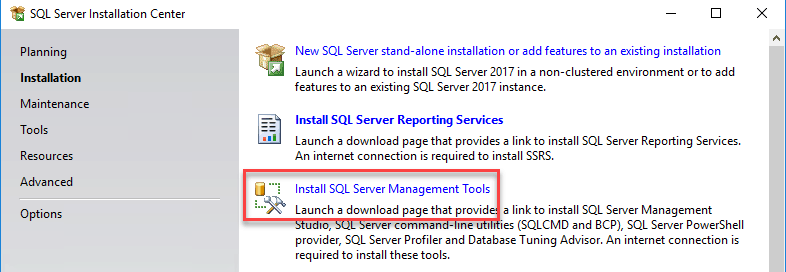

​14. After the installation completes for the database engine, we now need to install the SQL Server Management Tools. Launch the SQL installer again but this time select ​Install SQL Server Management Tools​.​​​ This will actually redirect you to a live web page where you have to download the latest 800MB+ tool package. Install the package.

15. From the Start menu launch the SQL Server Management Studio and validate that you can successfully login. If your login does not work reboot the SQL VM and try again.

​Summary

​In this post we installed the first instance of SQL 2017 using the manual method. We were careful to select the proper paths for all the files, and copied the SQL configuration INI file to a safe place. In Part 5, we will use this INI for an unattended installation on the second node. This reduces human error and ensures both nodes are configured the same. Unlike SQL 2014 and earlier, the management tools are a separate download and install process.

SQL 2017 Installation Series Index

SQL 2017 Always-on AG Pt. 1: Introduction

SQL 2017 Always-on AG Pt. 2: VM deployment

SQL 2017 Always-on AG Pt. 3: Service Accounts

SQL 2017 Always-on AG Pt. 4: Node A SQL Install

SQL 2017 Always-on AG Pt. 5: Node B SQL install

SQL 2017 Always-on AG Pt. 6: Cluster configuration

​SQL 2017 Always-on AG Pt. 7: Fileshare Witness (coming)

​​​​​SQL 2017 Always-on AG Pt. 8: Max memory and Email (coming)

​​​​SQL 2017 Always-on AG Pt. 9: SQL Maintenance (coming)

​SQL 2017 Always-on AG Pt. 10: AAG Setup (coming)

​SQL 2017 Always-on AG Pt. 11: Kerberos (coming)
