Redirect Hard-coded DNS To Pi-hole Using Ubiquiti EdgeRouter

​A little while ago I blogged about how to setup Pi-Hole on a Raspberry Pi 4 B with DNSCrypt. However, not all devices on your network may play nice with your DHCP server and respect the DNS servers that it provides. Google is infamous for hard coding DNS in products, such as Chromecast. Or maybe it's another IoT device that is dumb, and you want it to use Pi-Hole. This how-to will show you how to use your Ubiquiti EdgeRouter to capture the rogue DNS requests and send them to your Pi-Hole.

​After some research for quality border routers that could play well with my Eero mesh wifi and capture DNS requests, I decided to buy the Ubiquiti EdgeRouter 12 for my network. It has a hardware ethernet switch built in (some smaller EdgeRouter versions switch in software), so I could connect both of my Raspberry Pi 4s, NAS, and other devices locally to the router. There are cheaper/smaller Ubiquiti EdgeRouter models that would work for captive DNS, so you don't have to buy the larger "12" model. Other routers maybe provide similar advanced NAT rule or captive DNS features, but I didn't research beyond Ubiquity.

​Network Configuration

In this example my internal network address space is: 10.13.2.0/24. I've configured the EdgeRouter 12 for WAN+2LAN2 mode. And my two Pi-Hole servers are at 10.13.2.200 and 10.13.2.201. Adjust your configuration accordingly for your address space and Pi-Hole IPs.

​Masquerade for DNS

​First we need to setup a NAT masquerade rule. Go into EdgeOS, Firewall/NAT, Add Source NAT rule. Use the template below as your guide. Save your new NAT rule. If you only have one Pi-Hole, just use a single destination address.

​Destination NAT Rule

​Next, add a Destination NAT rule. Use the template below. Notice the last two Pi-Hole addresses are prefixed with a !. If you have a single Pi-Hole, just use that single IP in place of the range I have below.

​Captive DNS Results

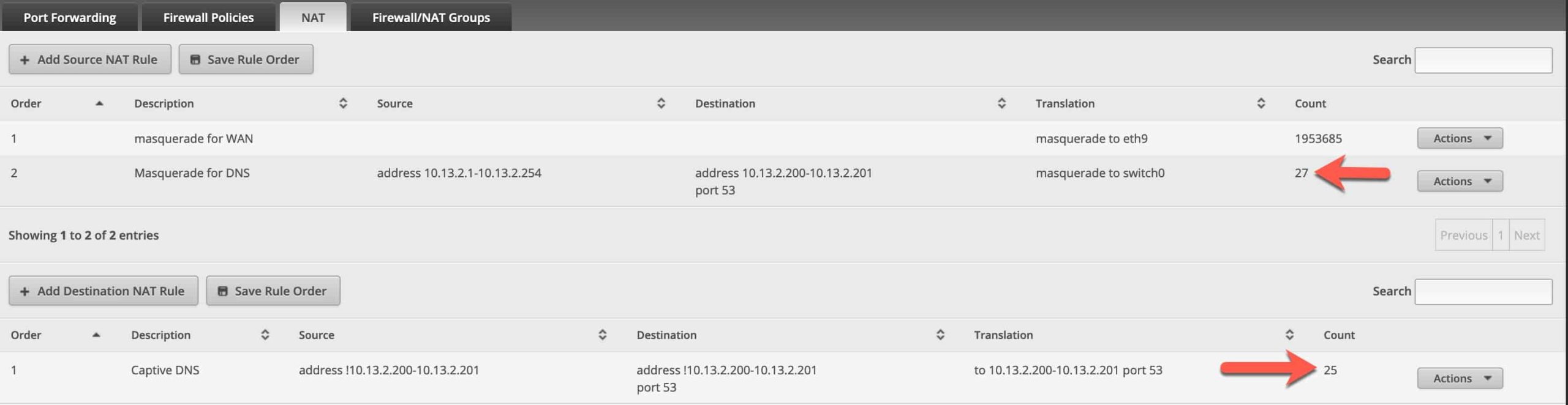

​After you get the rules saved and your 'rogue' devices try to do DNS queries, the Count should start to increase. You should also perform a few tests to ensure that both Pi-Hole and this new captive DNS rule are working as advertised.

​Testing Pi-Hole and your Captive DNS

​Next we should run a few tests to make sure everything is working. First, I SSH'd into my Raspberry Pi and did a nslookup on a domain I know Pi-Hole is blocking. As expect I got back all zeros. This didn't touch our NAT rules.

​Next, let's make sure that our Raspberry Pi, where Pi-Hole is running, can perform public DNS queries. This will make sure our NAT rule is allowing an exception for our RPIs. I did an nslookup on www.aol.com, and yes, got back the expected results.

​Next, let's simulate a rogue device on my network, like an evil Chromecast. To do that I'll use my MacBook Pro, open a shell, and use the dig command. Let's dig xp.apple.com, which should come back blocked and a result of all zeros. Windows doesn't have 'dig' natively, so you can follow the tedious instructions here to install BIND and use DIG.

​And viola, our Edgerouter 12 intercepted the DNS query to 8.8.8.8, redirected it to Pi-Hole, and Pi-Hole blocked it. Everything is working!

Note: If you run the DIG command from your RaspberryPi, it will NOT be intercepted and will return public information so don't be alarmed.

​Summary

​As you can see, configuring a Ubiquity EdgeRouter to intecept DNS queries is not at all difficult. After you setup two NAT rules you can then run some nslookup and DIG tests to ensure everything is working. All DNS queries from your network are now being funneled through to your Pi-Hole.
